Adjusting Parking brake

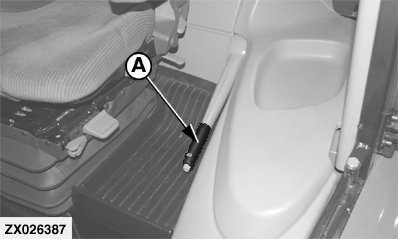

1. Before adjusting parking brake, set brake lever (A) to lowest notch of segment.

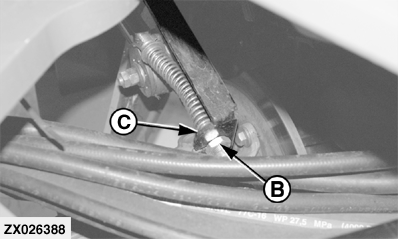

2. Slacken off lock nut (B) and tighten adjusting nut (C) until brake pads are in contact with the disk.

3. Secure with lock nut (B).

NOTE: When the parking brake is correctly adjusted, it must be possible to pull the lever (A) into the 4th notch using a force of 100 to 150 N (22 to 34 lb).

ZX026387
ZX026388

OUZXMAG,00010BB -19-27JUN01-1/1
