Changing Transmission Oil

causym CAUTION: Machine must be parked on level ground, with the boom assembly fully lowered, parking brake applied, engine stopped and all wheels chocked on both sides.

Proceed as follows:

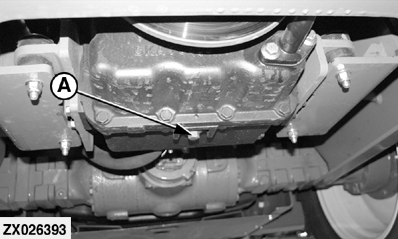

1. Remove drain plug (A) and allow oil to drain into a suitable container.

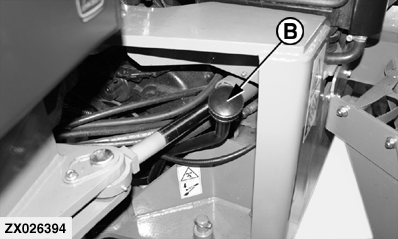

2. Fill the system with new oil of the correct grade at dipstick/filler neck (B)

IMPORTANT: Do not fill past the top mark on the dipstick.

Specification

Transmission Oil (PowerShift) -Capacity 12.5 liters (3.3 US. gal.)
Transmission Oil (Synchro-Shuttle) -Capacity 18.5 liters (4.9 US. gal.)

For correct oil type and grade see Section "Fuel, Lubricants, Coolant and Capacities".
