Air Cleaner

If the air cleaner indicator lamp glows during operation, remove and clean the outer filter element.

The service interval may be extended briefly, e.g. until the next suitable opportunity. Provided the outer filter element is serviced properly, this will not adversely affect it's performance.

The outer element may be cleaned up to 5 times. After that, or after 500 hours at the latest, it must be replaced.

• Open the hood then un-hook latches (A).
• Remove the cover (B) then pull outer element (C) out of the cleaner housing.

  IMPORTANT: Never run the engine without the outer filter element!

OUZXMAG,00010C6 -19-27JUN01-1/4

When the element (A) must be serviced in the field, tap it on the palm of your hand as temporary measure.

IMPORTANT: The guide ring (B) must not be damaged or deformed.

When you return to your service area, clean the filter element thoroughly, or replace it with a new one.

If tapping element does not remove dust, blow out dust with compressed air (not exceeding 500 kPa; 5 bar; 75 psi) by inserting nozzle inside the element and blowing from the inside of the filter to the outside.

Replace element if air cleaner indicator light continues glowing after the element has been cleaned.

OUZXMAG,00010C6 -19-27JUN01-2/4

IMPORTANT: Never run the engine when the dust unloading valve is removed!

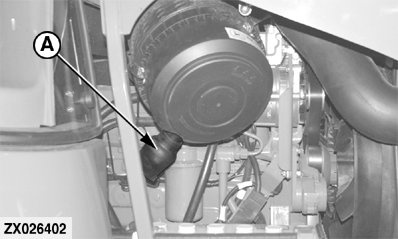

Remove dust deposits by squeezing the valve (A).

During the harvest, grass and chaff may adversely affect the performance of the dust unloading valve. Remove and clean the dust unloading valve as necessary.

Replace any damaged valve immediately.

NOTE: In dusty conditions, clean the dust unloading valve every day.

OUZXMAG,00010C6 -19-27JUN01-3/4

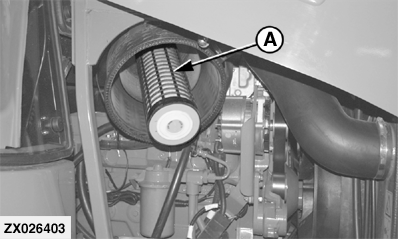

The inner element (A) must be changed if it becomes damaged and at every fourth service of the outer element. Change it at the latest after 2000 hours of operation.

IMPORTANT: Always replace inner element, do not attempt to clean it.
