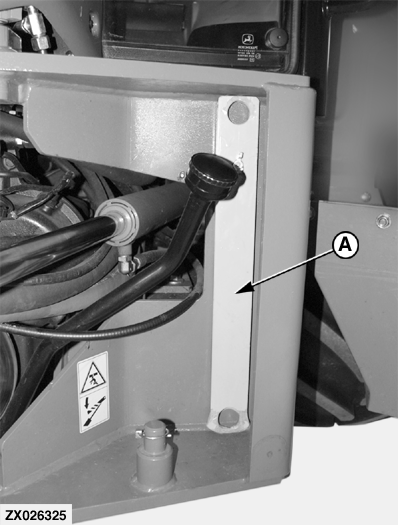

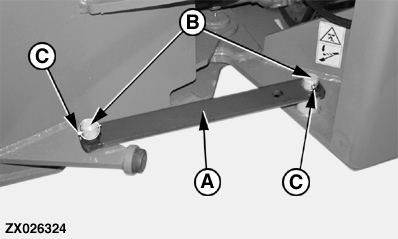

Articulation Joint Safety RodThe handler is furnished with an articulation joint safety rod (A) that must be used each time service is required in area of articulation joint. Place rod (A) on pins (B) as shown. Secure rod (A) with quick-lock pins (C). When not used, store rod (A) on its support as shown. |
|
OUZXMAG,00010ED -19-28JUN01-1/1 |
