Checking Air Conditioning Receiver-Drier

NOTE: Operator's seat must be removed to gain access to receiver-drier sight glass.

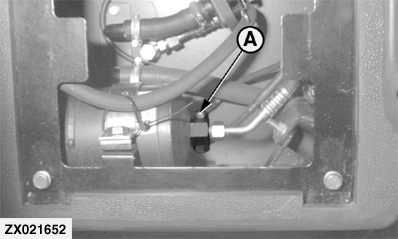

If there are bubbles in the sight glass (A) after the compressor has run for 30 seconds or more, see your John Deere dealer.

AG,OUZXMAG,599 -19-07JUN00-1/1
