Keep Radiator Screens Clean

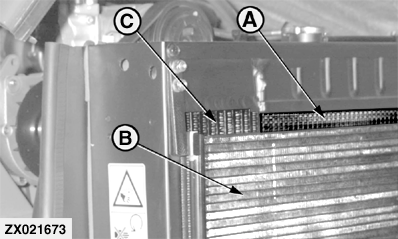

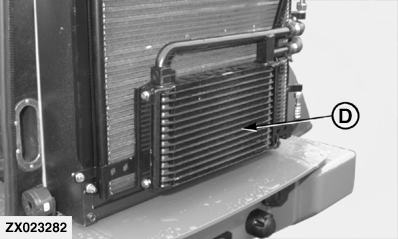

For efficient cooling, the radiator (A), condenser (B), transmission oil cooler (C) and hydraulic oil cooler (D) screens must be kept clean. Remove any dust or oil and carefully straighten any bent fins.

A-Radiator
B-Condenser
C-Transmission oil cooler
D-Hydraulic oil cooler

AG,OUZXMAG,620 -19-12DEC00-1/1
