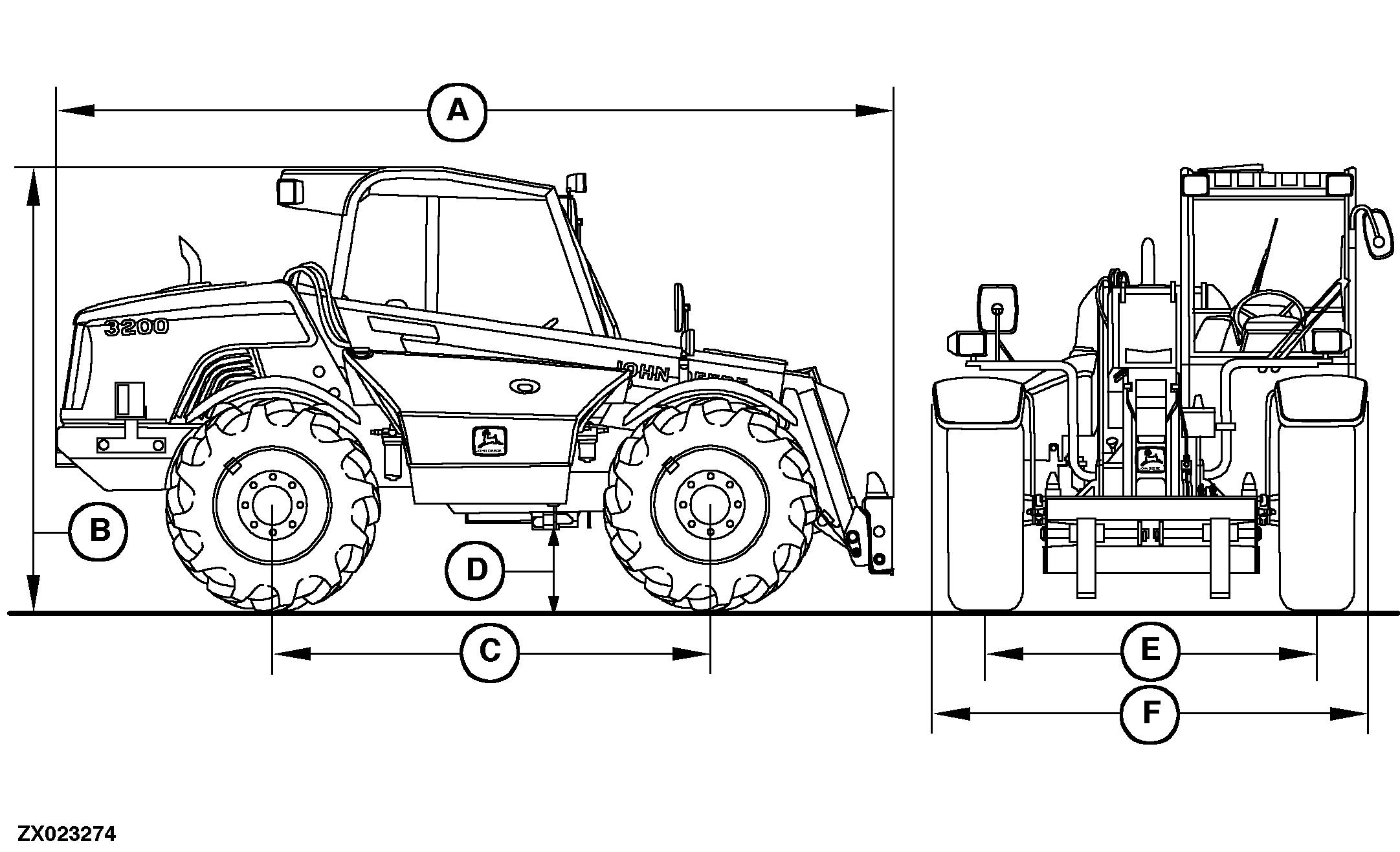

A-4650 mm (15 ft 3 in.)
B-2410 mm (7 ft 11 in.)

C-2410 mm (7 ft 11 in.)
D-420 mm (1 ft 4 in.)

E-1793 mm (5 ft 11 in.)
F-2303 mm (7 ft 7 in.)

-Weight: 6540 kg (14419 lb)

NOTE: The dimensions given refer to a handler with standard tires (16.0/70x20).

OUZXMAG,0000822 -19-12DEC00-1/1
