Every 50 Hours-Grease Fittings

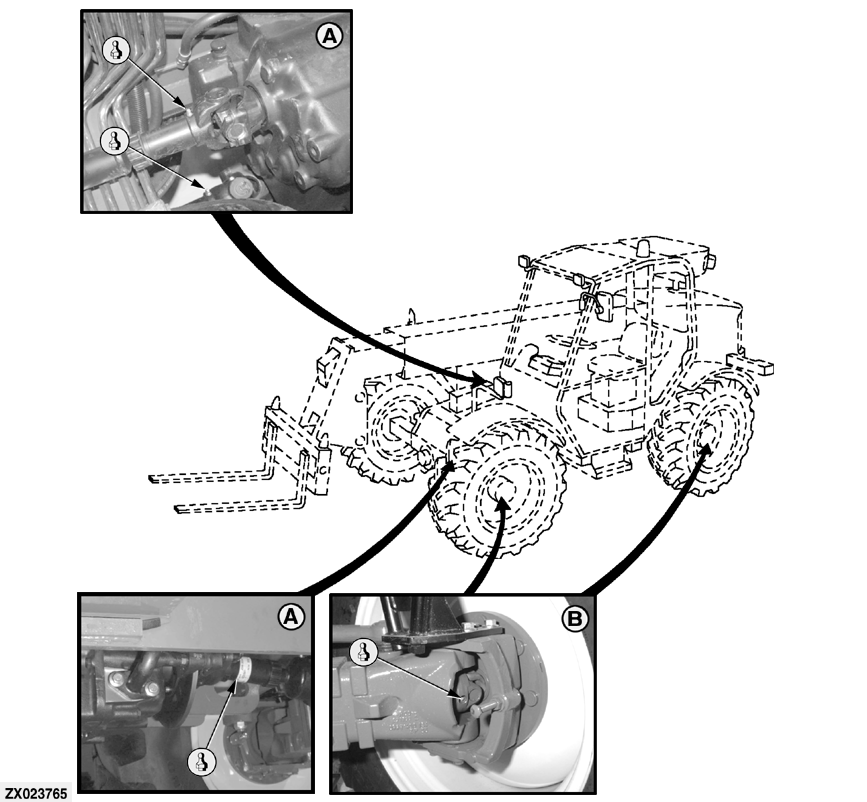

ZX023765


A-Axle U-joints (4x)

B-Gearbox drive shafts (3x)



Lubricate grease points of axles and drive shaft (7 points). Use specified grease (see Section "Fuel, Lubricants, Coolant and Capacities").

Clean the carrier cross tubes with a solvent. Allow the tubes to dry and then coat them with grease.

OUZXMAG,00008A4 -19-07FEB01-1/1
