Switch for Turn Signal Lights and Horn

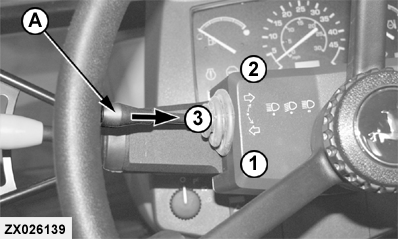

Positions of stalk switch (A):

1. Turn signal, left-hand turn
2. Turn signal, right-hand turn
3. Horn (push towards steering column)

NOTE: The turn signals are not self cancelling so the lever must be moved back to neutral.

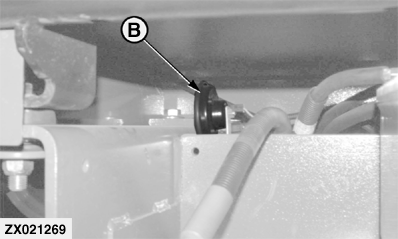

NOTE: Horn (B) is located underneath the cab, behind the battery.

ZX026139
ZX021269

OUZXMAG,00013D3 -19-15JAN02-1/1
