IMPORTANT:
Always operate the machine with the door fastened shut and the door window either locked to the door or held back by its retainer.

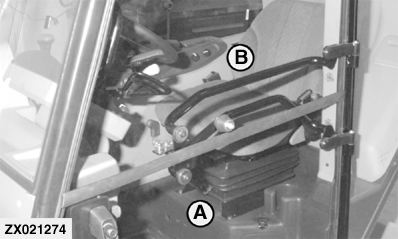

The machine is equipped with a wide opening two piece glass stable door (A) for easy access and improved visibility. The upper half (B) of the door can be folded back and locked open to improve ventilation.

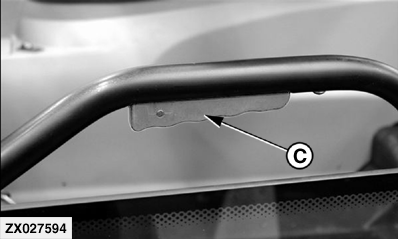

To open the door from inside the cab press lever (C).

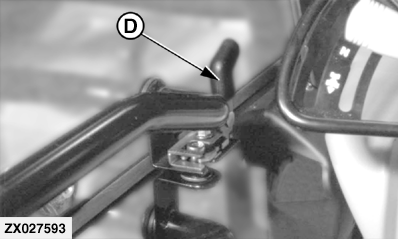

To open the door window from inside the cab pull handle (D).

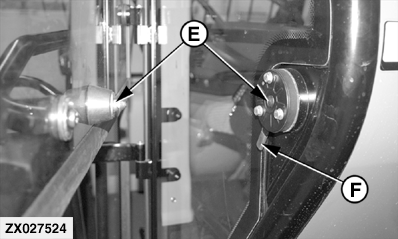

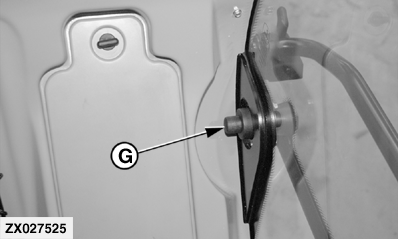

To release the door window from its retainer pull on lever (F) or depress button (G).
A-Side door
B-Side window
C-Door lever
D-Door window handle
E-Lock pin and retainer
F-Release lever
G-Release button
|
