Emergency Exit

The right-hand and rear cab windows can be used as an emergency exit:

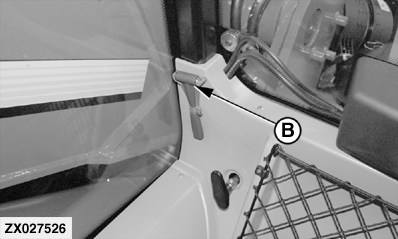

  • To use the r.h. cab window as emergency exit, break the glass with the hammer (B) provided.

    causym CAUTION: Never operate handler with a broken r.h. cab window! Immediately replace window after glass is broken.

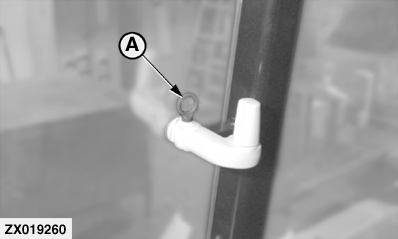

  • To use the rear cab window as emergency exit, disengage the retaining pin (A) from rear cab window handle then fully open the window.
ZX019260

Rear Emergency Exit

ZX027526

OUZXMAG,00013D9 -19-15JAN02-1/1
