Steering Wheel Height/Tilt Adjustment

Steering Wheel Height Adjustment:

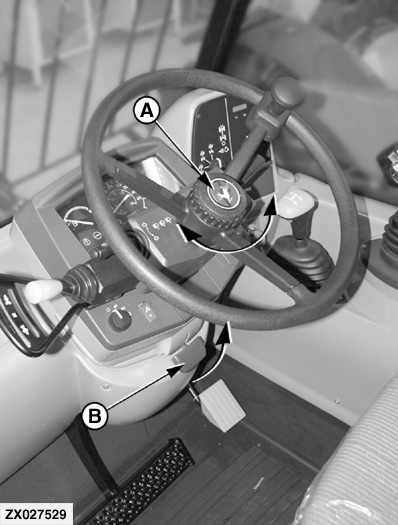

Loosen hub (A). Push or pull wheel to position. Tighten hub to lock.

NOTE: Only a slight tightening of the hub is needed to hold steering wheel in position.

Steering Wheel Tilt Adjustment:

Pull lever (B) upward, move steering wheel to desired angle and release the lever.

NOTE: If only the lever is pulled, the steering wheel will rise to its highest position.

OUZXMAG,00013DC -19-15JAN02-1/1
