Windshield Wiper and Washer System

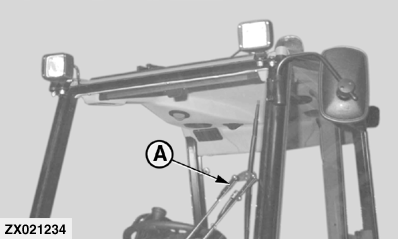

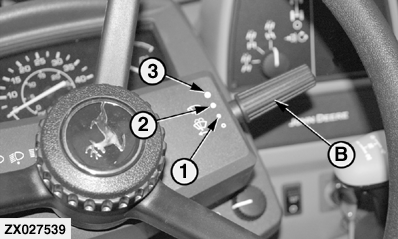

Windshield wiper (A) is operated by means of switch (B) which has three positions:

1. Intermittent
2. Slow wipe
3. Fast wipe

Push switch (B) towards steering column to operate the windshield washer system.

Add a suitable anti-freeze solution to water in reservoir (C) if temperature is liable to drop below freezing point.

A-Windshield wiper
B-Switch for windshield wiper
C-Reservoir
1-Intermittent
2-Slow wipe
3-Fast wipe

OUZXMAG,00013E2 -19-15JAN02-1/1
