Armrest Control Panel

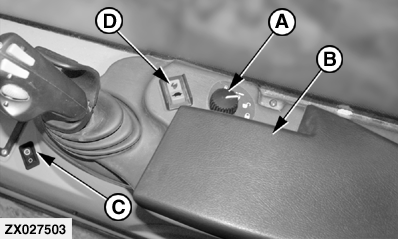

A-Boom/attachment hydraulic function lock switch
B-Armrest
C-Declutch switch
D-Gear shift switch (PowerShift option)

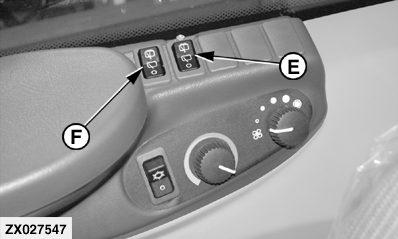

E-Rear window wiper switch
F-Cab roof wiper switch

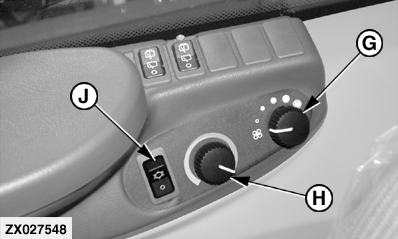

G-Blower switch
H-Heater control switch
J-Air conditioning system switch (option)

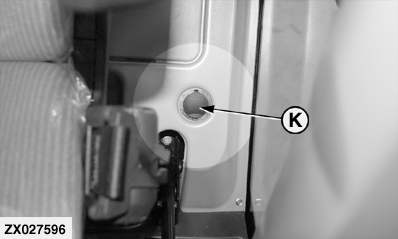

K-Power outlet socket (12 V)
|
