Cab Roof Wiper

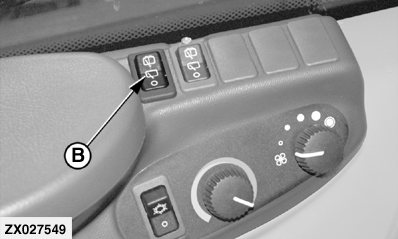

The cab roof wiper (A) is operated by means of switch (B). Push the switch once to operate cab roof wiper or fully push and hold switch to operate cab roof window washer system.

Add a suitable anti-freeze solution to water in reservoir (C) if temperature is liable to drop below freezing point.

OUZXMAG,00013E9 -19-15JAN02-1/1
