Rear Window Wiper

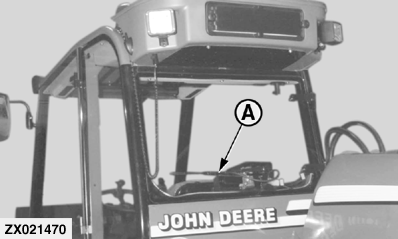

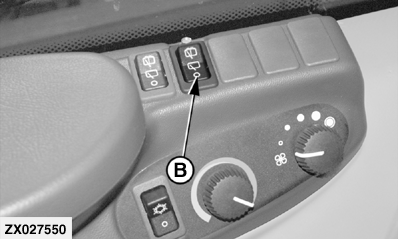

The rear window wiper (A) is operated by means of switch (B). Push the switch once to operate rear wiper or fully push and hold switch to operate rear window washer system.

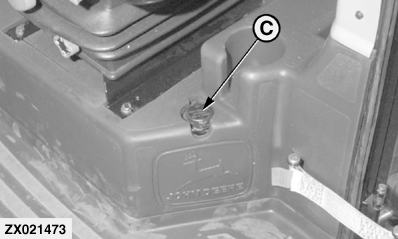

Add a suitable anti-freeze solution to water in reservoir (C) if temperature is liable to drop below freezing point.

ZX021470
ZX027550
ZX021473

OUZXMAG,00013EA -19-15JAN02-1/1
