Blower and Air Louvers

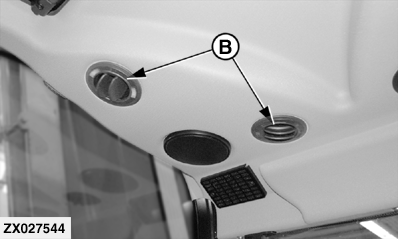

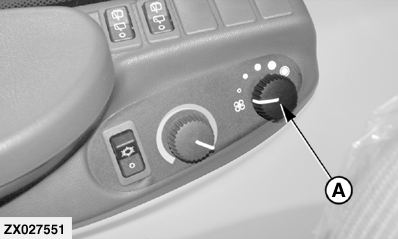

The four blower speeds are controlled by a switch (A). The direction of the air flow can be altered by means of air louvers (B).

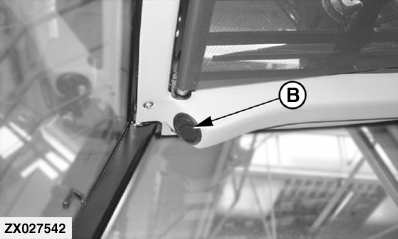

NOTE: Right-hand side louvers illustrated.

Adjust air louvers (B) to prevent misting of windows.

OUZXMAG,00013EB -19-15JAN02-1/1
