Gear Shift Lever (Synchro-Shuttle)

The telescopic handler can be equipped with a synchromesh unit with fully synchronized 4/4 speed electro-hydraulic shuttle reverser coupled to a torque converter.

To shift gears, there are two alternatives:

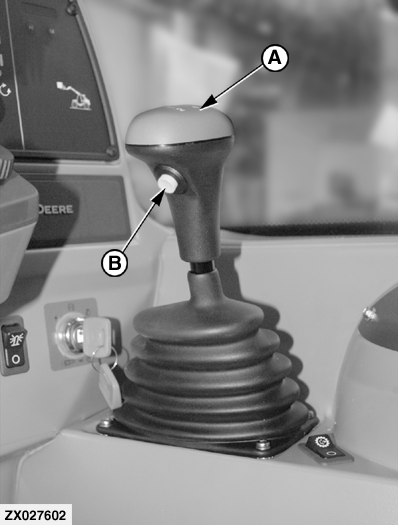

1. Press the clutch disengage button (B) on the gear lever (A) to allow shifting. Once in the new gear the button can be released to allow driving to continue.
2. The FNR lever can be returned to neutral before the gear lever (A) is shifted.

NOTE: See "Forward-Neutral-Reverse Lever (FNR)" in this Section.


ZX027602

OUZXMAG,0001400 -19-16JAN02-1/1
