Observe Lift Capacity Limits (3400 Handler)

ZX023763

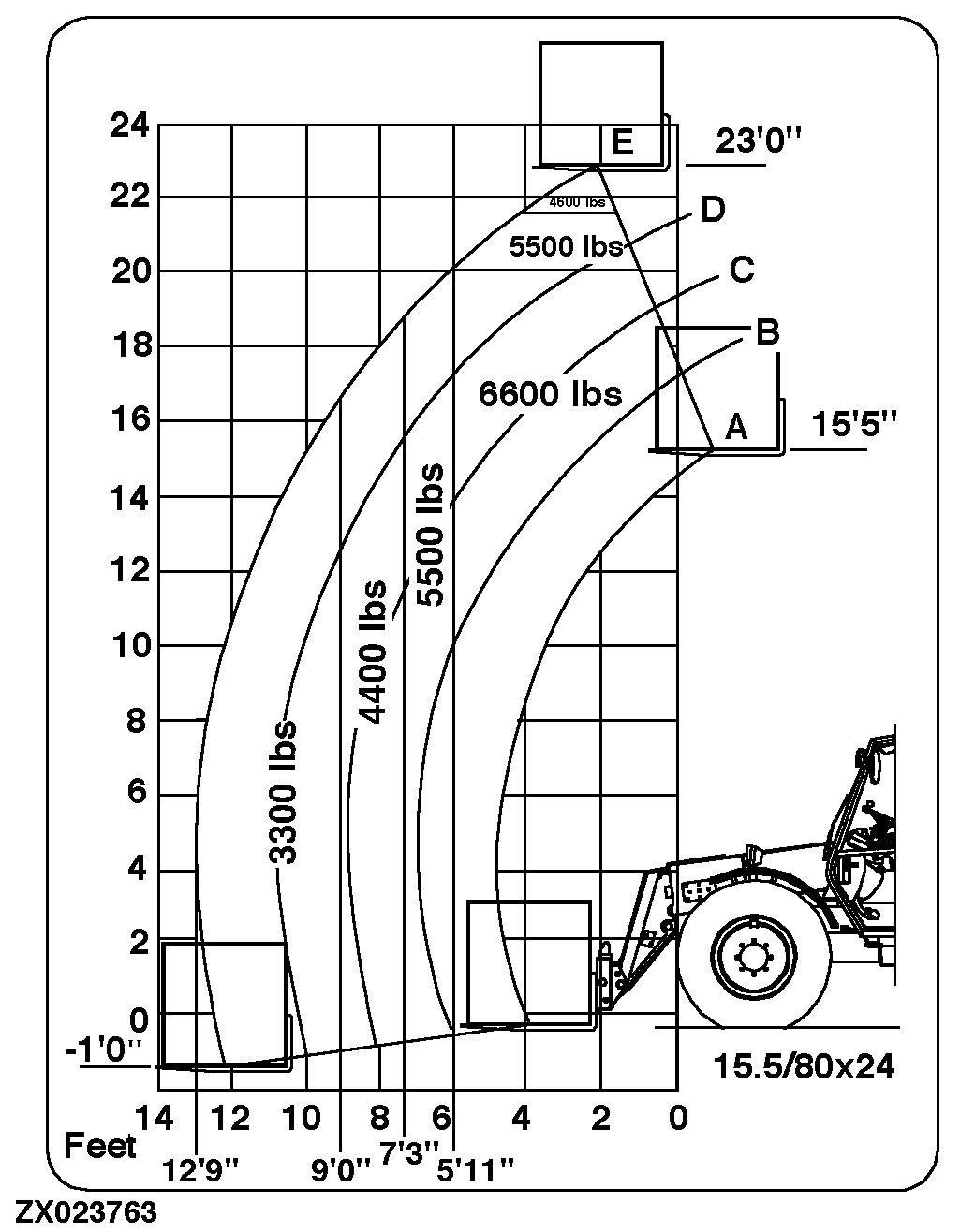

3400 Load Chart With Pallet Fork

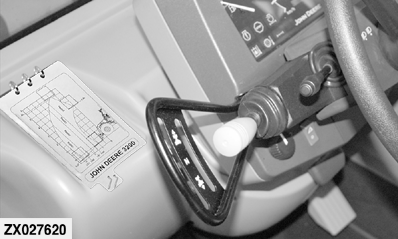

Always observe the lift capacity limits listed under "Lift Capacity and Lifting Height" in the "Specifications" Section or written on load chart (see illustrations) furnished with the handler.

causym CAUTION: The specified lift capacities must not be exceeded, otherwise machine stability is not sufficient. Danger of accidents!

ZX027620

OUZXMAG,0001411 -19-16JAN02-1/1
