Opening the Hood
ZX023764
ZX021550

causym CAUTION: Always shut off engine and remove key before opening engine hood (A). To avoid bodily injury, do not open hood until all rotating parts have stopped completely.

The hood is supported by gas-fitted struts.

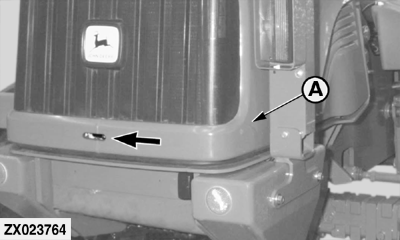

To open the engine hood (A), use a suitable tool (13 mm across flats) or else use tool (B), which is available through spare parts channels (see arrow).

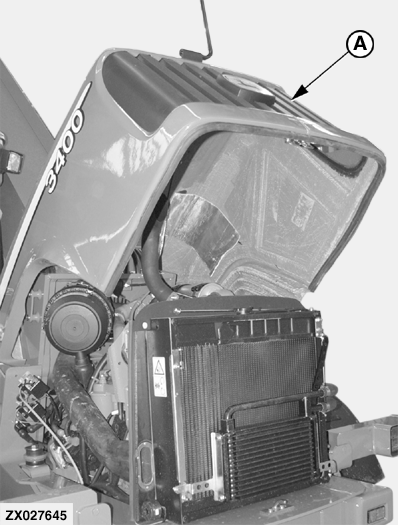

Open hood, it will be held opened by gas-fitted struts (C) as shown.

    This will give access to:

  • Radiator and coolers
  • Alternator, fan belt and starting motor
  • Engine oil and fuel filters
  • Air cleaner
ZX027645
ZX027646

OUZXMAG,0001420 -19-17JAN02-1/1
