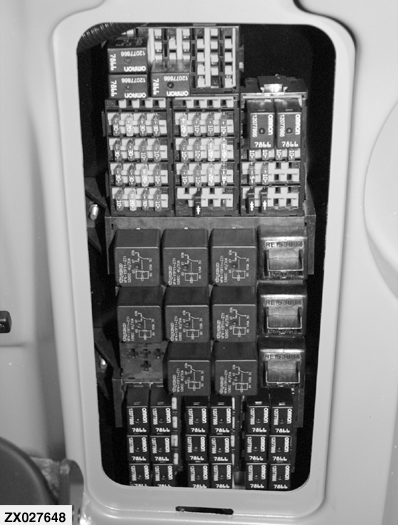

The fuses are located at the rear left side of operator's seat.

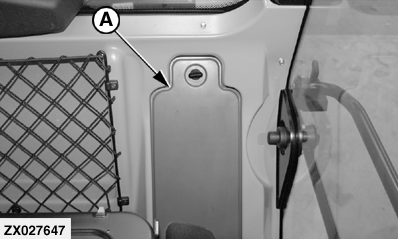

Open cover (A) to access the fuses.

To help in fuse or relay identification, back of cover (A) provides the fuse and relay layout.
