Single Point Greasing (Option)

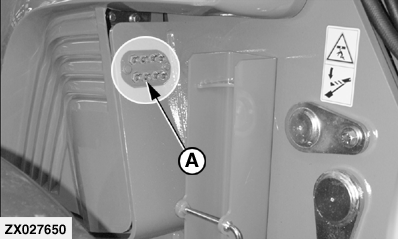

As an option, one greasing bank (A) is available to lubricate the following grease points:

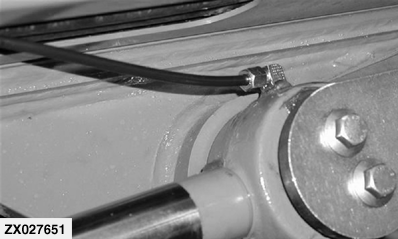

  • Rear axle pivots (2 points)
  • Boom lift cylinder (2 points)
  • Compensating cylinder (2 points)
  • Boom pivot (2 points)
ZX027650
ZX027651

OUZXMAG,0001422 -19-17JAN02-1/1
