Boom Angle Indicator

ZX027653

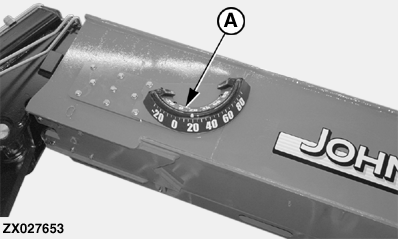

Angle Indicator - Boom raised 20°

ZX027654

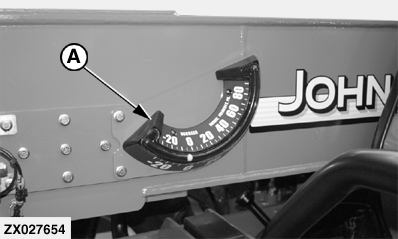

Angle Indicator - Boom horizontal

The boom angle indicator (A) allows the operator to get a quick view on boom angle to better observe the lift capacity limits while raising the boom.
