Changing Fuel Filter

1. Unfasten filter retaining ring (A) and remove filter, sealing the old filter with the cover of the new filter.

2. Remove water trap (B) and attach it to the new filter.

3. Install new filter, ensuring that the marks on the filter and housing are properly aligned.

4. Tighten retaining ring (A) until it can be heard to engage.

5. Slacken off bleed screw (C).

6. Pump the fuel transfer pump primer lever (D) until the flow of fuel is free from air bubbles. Then retighten the bleed screw (do not overtighten!).

NOTE: If the primer lever will not pump fuel and no resistance is felt at upper end of stroke, turn engine with starter motor to change position of fuel pump drive lobe on camshaft. When bleeding is completed, be sure to leave the lever at the point nearest the engine.

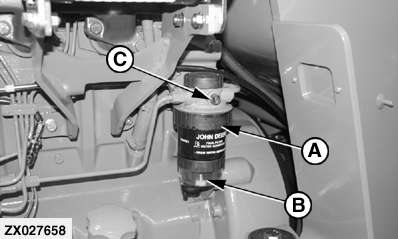

ZX027658

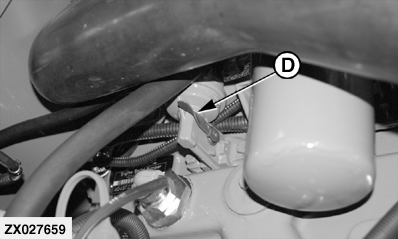

ZX027659


A-Filter retaining ring
B-Water trap
C-Bleed screw
D-Transfer pump primer lever
