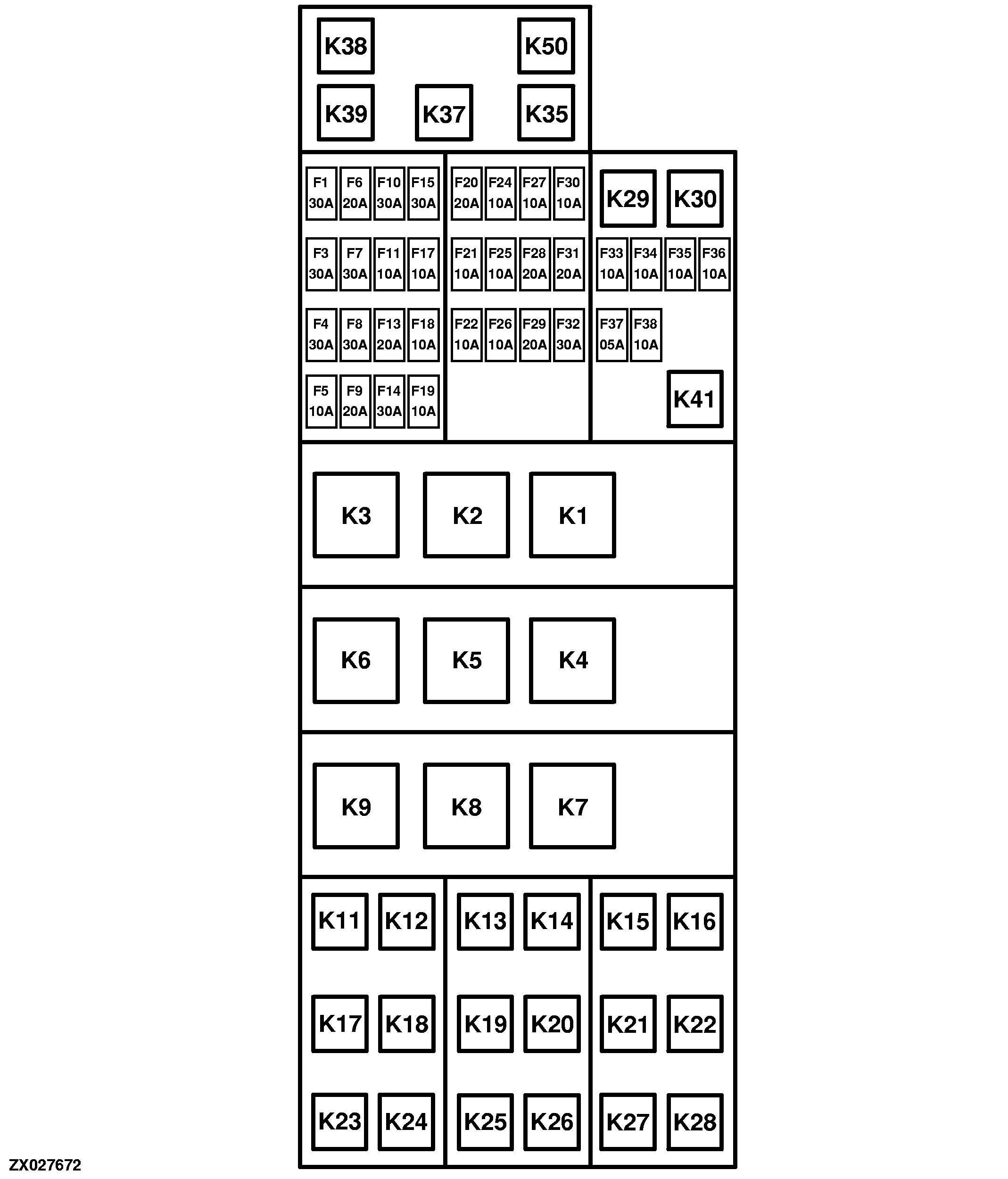

Fuses and Relays (Synchro-Shuttle Transmission)
|
|
OUZXMAG,0001442 -19-22JAN02-1/3
|
| Fuses: |
|
|
| F1 |
- |
30A, Starting Motor |
| F3 |
- |
30A, Heater, Air Conditioning |
| F4 |
- |
30A, Front/Rear Working Lights |
| F5 |
- |
10A, Radio, Dome Lamp, Horn, Clock |
| F6 |
- |
20A, Full Beam Headlights |
| F7 |
- |
30A, Main Fuse Lighting |
| F8 |
- |
30A, Beacon/ Stop Lights |
| F9 |
- |
20A, Hazard, Turn Signal |
| F10 |
- |
30A, Electrical Socket |
| F11 |
- |
10A, Boom Extend/Retract Solenoid Valve |
| F13 |
- |
20A, Air Comfort Seat Motor |
| F14 |
- |
30A, Electrical Socket |
| F15 |
- |
30A, Trailer Socket |
| F17 |
- |
10A, Console/Instrument Display |
| F18 |
- |
10A, Load Monitor Display |
| F19 |
- |
10A, Steering Mode Switch |
| F20 |
- |
20A, FNR Lever |
| F21 |
- |
10A, Rear Auxilliary Function Solenoid Valve |
| F22 |
- |
10A, Front Auxilliary Function Solenoid Valve |
| F24 |
- |
10A, Operator's Seat Presence Switch |
| F25 |
- |
10A, Air Conditioning |
| F26 |
- |
10A, Boom Work Light |
| F27 |
- |
10A, Boom Work Light |
| F28 |
- |
20A, Rear R.H. Lamp, Front Position L.H Lamp, License Plate Lamp |
| F29 |
- |
20A, Rear L.H. Lamp, Front Position R.H Lamp |
| F30 |
- |
10A, Reverse Alarm |
| F31 |
- |
20A, Front Wiper |
| F32 |
- |
30A, Roof/Rear Wiper |
| F33 |
- |
10A, Boom Extend/Retract Relay |
| F34 |
- |
10A, Lift Lock Solenoid Valve |
| F35 |
- |
10A, Carrier Lock Solenoid Valve |
| F36 |
- |
10A, Front Attachment Relay |
| F37 |
- |
5A, Radio, Clock |
| F38 |
- |
10A, Timer Module |
| |
|
|
| Relays: |
|
|
| K1 |
- |
Ignition |
| K2 |
- |
Accessories |
| K3 |
- |
Wiper |
| K4 |
- |
Air Conditioning/Heater |
| K5 |
- |
Rear Work Lights |
| K6 |
- |
Front Work Lights |
| K7 |
- |
Headlight Flasher |
| K8 |
- |
Start Safety |
| K9 |
- |
Worklight Disable |
| K11 |
- |
Roof Wiper |
| K12 |
- |
Rear Wiper |
| K13 |
- |
By-Pass Start 1 |
| K14 |
- |
By-Pass Start 2 |
| K15 |
- |
Brake Lights |
| K16 |
- |
Turn Signal Enable 1 |
| K17 |
- |
Turn Signal Enable 2 |
|
|
OUZXMAG,0001442 -19-22JAN02-2/3
|
| K18 |
- |
Park Light |
| K19 |
- |
R.H Turn Signal |
| K20 |
- |
L.H Turn Signal |
| K21 |
- |
Timer, Steering Mode |
| K22 |
- |
Parking Brake |
| K23 |
- |
Clutch |
| K24 |
- |
Reverse Drive |
| K25 |
- |
Boom Retract |
| K26 |
- |
Boom Extend |
| K27 |
- |
Forward Drive |
| K28 |
- |
Operator's Presence |
| K29 |
- |
Front Attachment Extend |
| K30 |
- |
Front Attachment Retract |
| K35 |
- |
Transmission Control 1 |
| K37 |
- |
Boom Control Validation 1 |
| K38 |
- |
Boom Control Validation 2 |
| K39 |
- |
Front Attachment Diverter |
| K41 |
- |
Turn Signal Power |
| K50 |
- |
Head Lamp |
|
|
OUZXMAG,0001442 -19-22JAN02-3/3
|
|
