Light Switches

causym CAUTION: Accidental collision with another vehicle can cause injury or death to you or others. Always comply with traffic regulations when driving machine on road. Dim headlights to low beam for oncoming vehicles.

To avoid motorist confusion, do not operate work lights when transporting on public roads.

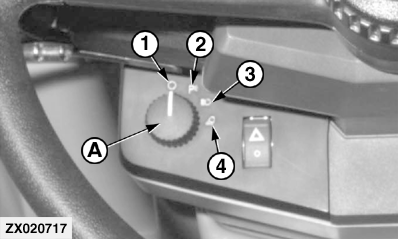

Light switch (A) can be set to the following positions:

1. Light switch in "off" position
2. Parking lights "on"
3. Headlights "on"
4. Work lights "on"

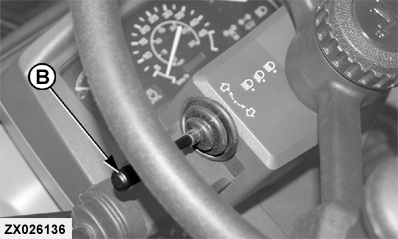

Switch headlights to "full beam" or "low beam" position by means of switch (B):

  • Switch down = Full beam
  • Switch in center = Low beam
  • Switch up = Headlight flasher

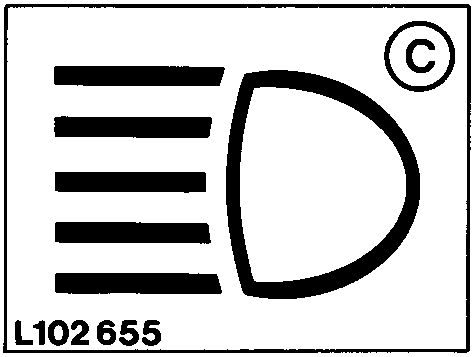

Indicator light (C) will glow when headlight switch is in "full beam" position.

ZX020717
ZX026136
L102655

OUZXMAG,00014AC -19-15MAR02-1/1
