The telescopic handler can be equipped with a PowerShift transmission unit with fully synchronized 5/3 speed electro-hydraulic shuttle reverser coupled to a torque converter.
To shift gears, there are two alternatives:
1.
Press upper part of the switch (A) on multi-function lever to upshift and lower part of switch (A) to downshift.
2.

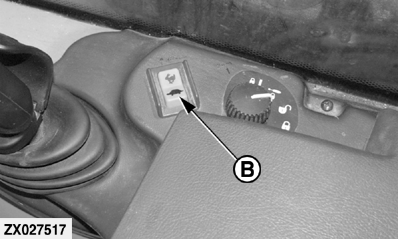

Press upper part (rabbit) of the switch (B) on armrest control panel to upshift and lower part (tortoise) of switch (B) to downshift.
NOTE:
Using the switch (B) allows easier gear shifting while driving.
While shifting, the gear indicator (C) will indicate the gear engaged depending on FNR lever position:
|
