Operating the Boom

CAUTION: Always consult the load chart and load monitor before and during boom manipulation.

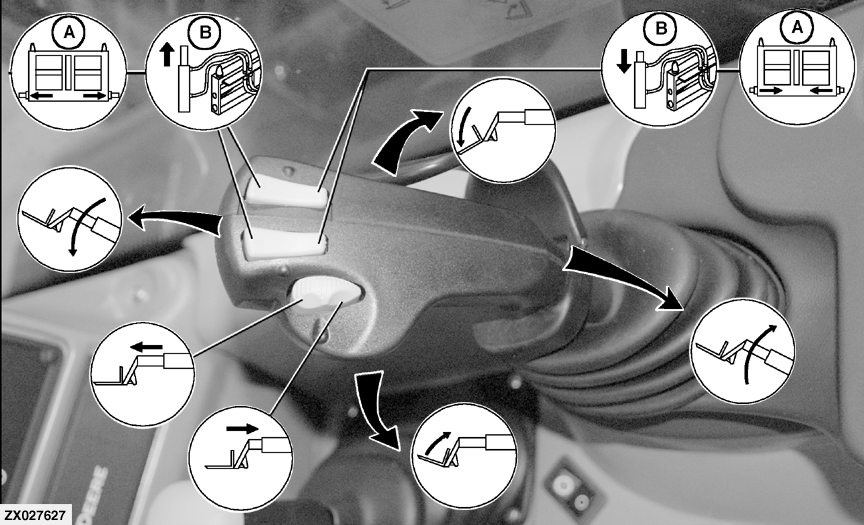

The boom and attachment carrier are controlled by the Multi-function lever and switches.

Refer to illustration above for the Multi-function lever and switch operation.

A-Carrier lock pin actuation
B-Attachment hydraulic function
C-Hydraulic connectors
D-Knob
E-Diverter valve

OUZXMAG,00014F0 -19-21MAR02-1/2

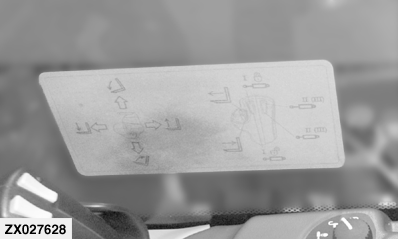

NOTE: A sticker summarizing all Multi-function lever functions is glued on right-hand side window.

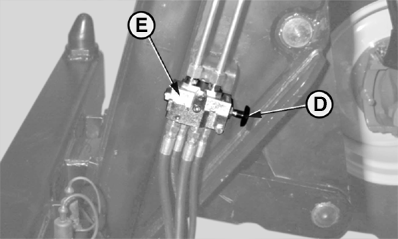

• To operate the attachment hydraulic functions (B), connect hydraulic hoses to connectors (C) then push forward knob (D) of diverter valve (E).
• To operate the carrier locking pin (A), pull rearward knob (D) of diverter valve (E).

NOTE: Refer to "Operating Attachments" Section for front equipment attaching/detaching procedures.

OUZXMAG,00014F0 -19-21MAR02-2/2
