Attachment Auxiliary Functions

Install attachment as described under "Attaching/Detaching Equipment to Carrier" in this Section.

CAUTION: Always check locking pins before tilting or operating any attachment.

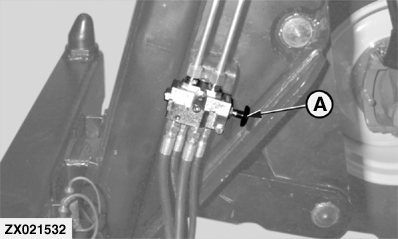

The position of knob (A) decides whether the hydraulic pin-locking system is operated or the attachment hydraulic functions. Push knob (A) forward to operate hydraulic functions of attachment.

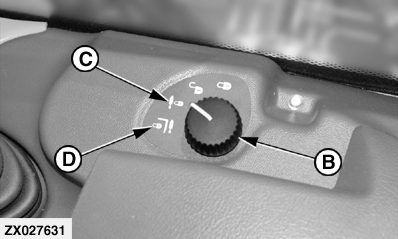

If necessary and depending on knob (A) position , place lockout switch (B) to position (C) to prevent accidental use of pin-locking system or to position (D) to lock all attachment hydraulic functions.

A-Knob
B-Lockout switch
C-Locking pins locked
D-Attachment functions locked
