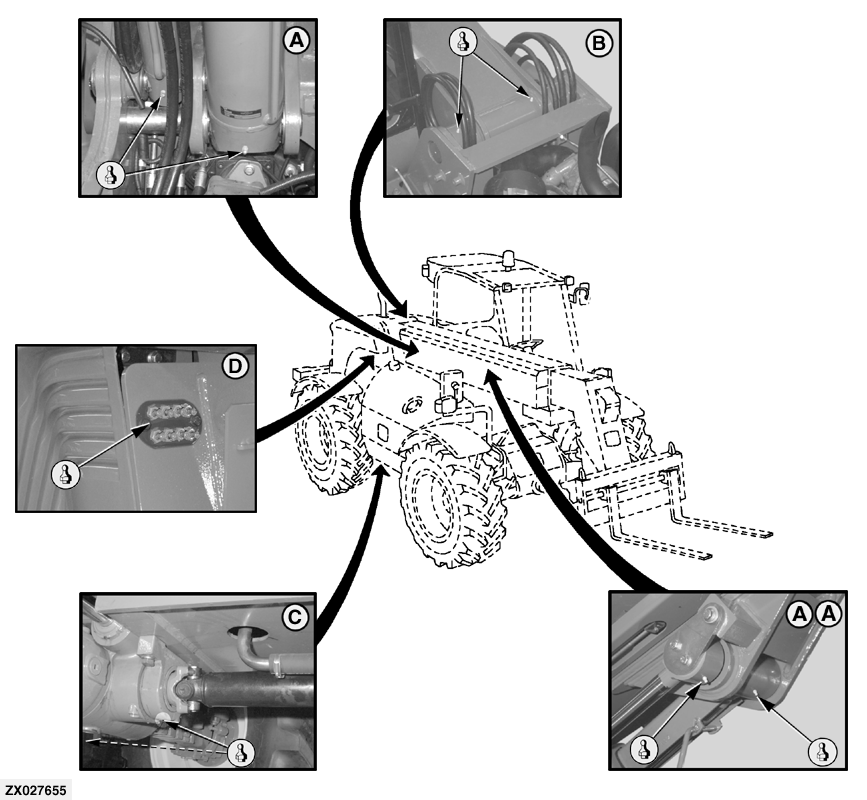

A-Boom lift cylinder (2x)
A-A-Compensating cylinder (2x)

B-Boom pivot (2x)

C-Rear axle pivots (2x)

D-Grease bank (8x) - Option

CAUTION: Secure boom with lift cylinder safety channel prior to lubricating grease points with boom raised.

NOTE: Grease bank (D) lubricates points (A), (A-A), (B) and (C).

Lubricate grease points of boom pivot, lift and compensating cylinders, rear axle pivots (8 points).

Use specified grease (see Section "Fuel, Lubricants, Coolant and Capacities").
