Changing Axle Differential Oil

IMPORTANT: Clean the area surrounding plugs before removing. Ensure a suitable container is placed on the ground to catch oil. When removing drain plugs, be sure to stand to one side to avoid oil which will spill from the hole.

Proceed as follows:

1. Drain lubricating oil by removing the drain plug (A) in differential casing (B).

2. Re-fill with clean oil of the correct type and grade at fill plug (C) (see "Fuel, Lubricants, Coolant and Capacities").

Specification

3200 Front Axle Differential Housing -Capacity 7.1 liters (1.87 US. gal.)
3200 Rear Axle Differential Housing -Capacity 7.1 liters (1.87 US. gal.)
3400 Front Axle Differential Housing -Capacity 6.5 liters (1.71 US. gal.)
3400 Rear Axle Differential Housing -Capacity 7.1 liters (1.87 US. gal.)

3. The differential case oil levels are correct when they reach the level plug hole (D).

4. Re-fit all plugs and tighten to 180 N·m (132 lb-ft)

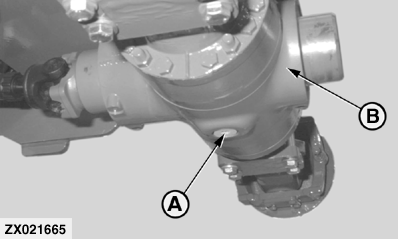

ZX021665

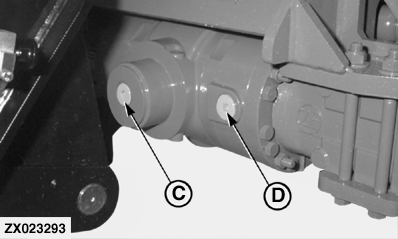

ZX023293


A-Drain plug
B-Casing
C-Fill plug
D-Level plug

OUZXMAG,00014FD -19-21MAR02-1/1
