CAUTION:
When driving on gradients the declutch facility MUST NOT be used to maintain full engine braking.

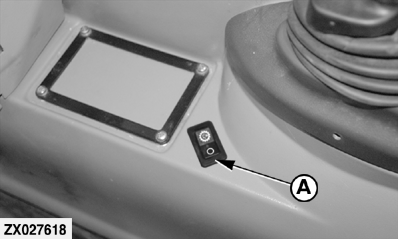

When performing loading tasks the transmission can be automatically disengaged/engaged thanks to the declutch switch (A).

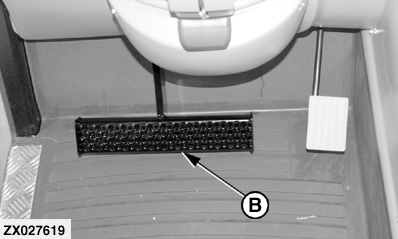

Press on top part of switch (A) and press the brake pedal (B) to disconnect the drive from the transmission.
This will enable the engine speed to be increased to achieve maximum performance from the hydraulic system without selecting neutral with the FNR lever.
Release the brake pedal (B) to reconnect the drive to the transmission temporarily.
Press on lower part of switch (A) to reconnect the transmission permanently.
CAUTION:
When driving on gradients the declutch facility MUST NOT be used to maintain full engine braking.
