Outside Mirror Control Switch (Option)

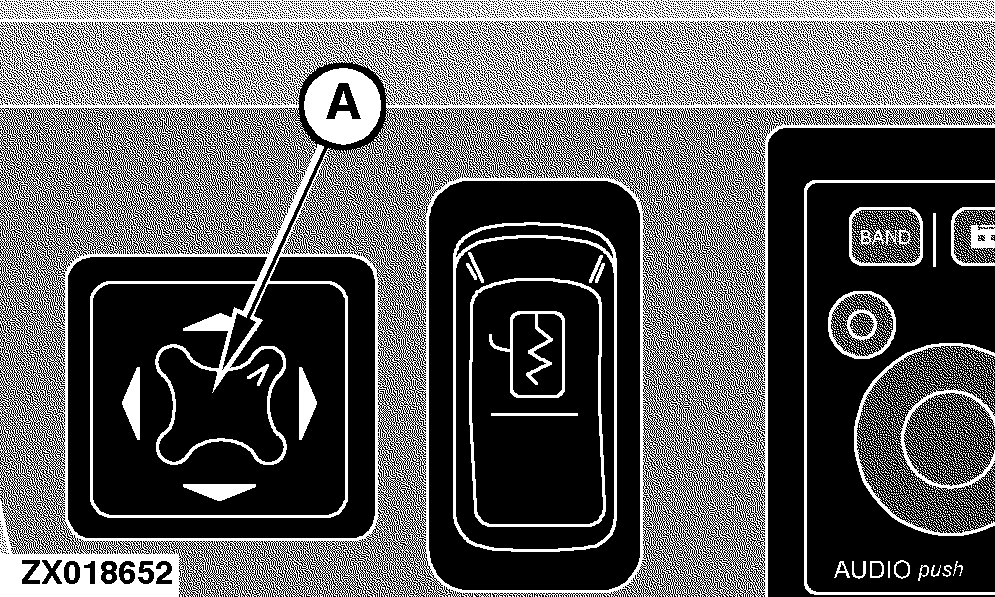

The right and left-hand side rear view mirrors are adjusted by moving the remote mirror control switch (A) located in the overhead control panel.

Move mirrors up/down or to the right/left according to arrows on switch.


A-Mirror Control Switch

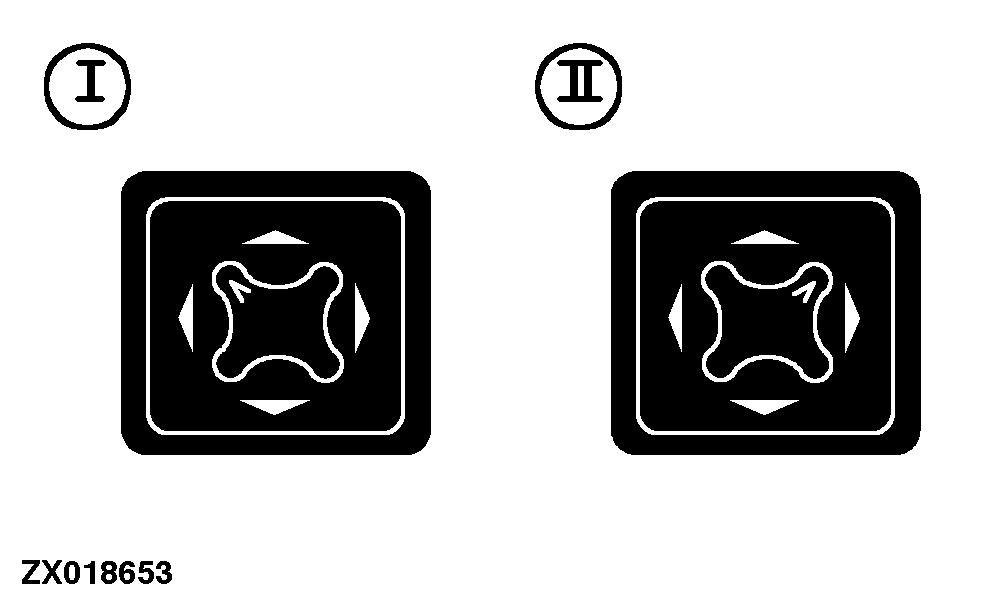

I-Adjusting R.H. Outside Mirror
II-Adjusting L.H. Outside Mirror

ZX018652
ZX018653

AG,OUZXMAY,110 -19-18SEP02-1/1
