Adjusting Left-Hand Armrest and Seat Back

To adjust the left-hand armrest up or down, use knob (A). Rotate the knob clockwise to lower and counter clockwise to raise.

Pull up on handle (B) to adjust seat back angle. Release handle when seat back is in desired position.

Turn knob (C) clockwise or counter clockwise to adjust lumbar back support.

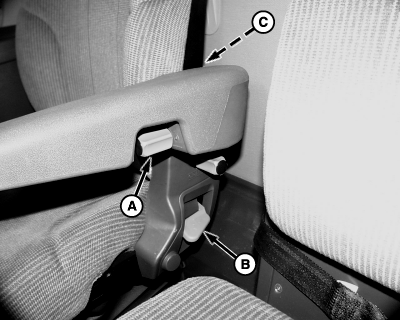

A-Left-Hand Armrest Adjustment Knob
B-Seat Back Angle Adjustment Handle
C-Lumbar Back Support Adjustment Knob

OUO6075,00015AB -19-02APR01-1/1
