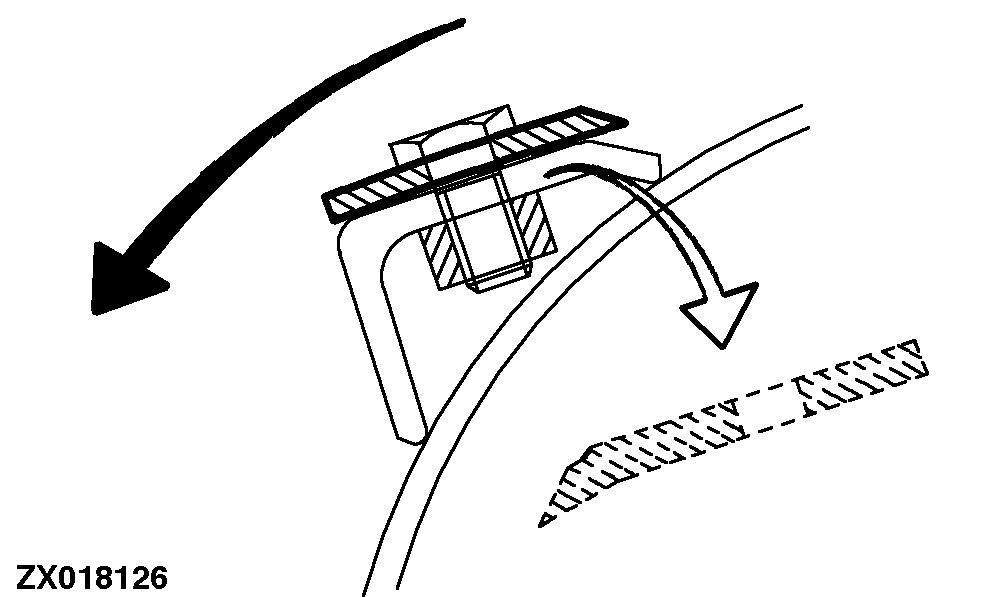

Removing/Sliding Back Cutterhead Knife

If for increasing length of cut the cutterhead knives have been removed/slid back there are two possibilities of protecting knife bed from damage:

1. Loosen attaching screws, slide back knives and tighten attaching screws to specified torque.
2. Loosen attaching screws and remove knives and tighten attaching screws to specified torque.

OUZXMAY,0000300 -19-20SEP00-1/1
