Diagnostic Trouble Codes

The list below deals with the diagnostic trouble codes that are generated by the control units and can be transferred to the databus. In the diagnostic mode, they are displayed on the corner post.

A DTC service code (Diagnostic Trouble Code) consists of three elements:

  • CUI = Control Unit Identifier, refers to the control unit
  • SPN = Suspect Parameter Number; this number refers to the faulty sub-system.
  • FMI = Failure Mode Identifier; this number defines the type of fault.

Priority of Diagnostic Trouble Codes

Each Diagnostic Trouble Code (DTC) has a priority. The priority of the DTC is indicated in the way the DTC is displayed:

  • STOP = Priority 1 - The Cornerpost Display 1 will stop normal function and the DTC will be displayed. This indicates a problem that requires the forage harvester be stopped, the engine shut off immediately and the problem corrected. The Cornerpost Display 1 will show the DTC until the problem is solved.
  • WARNING = Priority 2 - The Cornerpost Display 1 Diagnostic Indicator comes on. This indicates a problem that should be checked immediately.
  • PROTECT = Priority 3 - DTC's will be stored, but it is not indicated.

Control Unit Abbreviations

OUZXMAY,000034F -19-24JAN02-1/10

Display Meaning
ARC Armrest Control Unit
ECU Engine Control Unit
OCP Overhead Control Panel
RCP Corner Post Control Unit
RDC Rear Wheel Drive Control Unit
RGC Row Guidance Control Unit
SIG Metal Detector Control Unit
SPF SPFH Main Control Unit



OUZXMAY,000034F -19-24JAN02-2/10

Prepare Forage Harvester:

Turn the key switch to the run position.

ZX002403

OUZXMAY,000034F -19-24JAN02-3/10

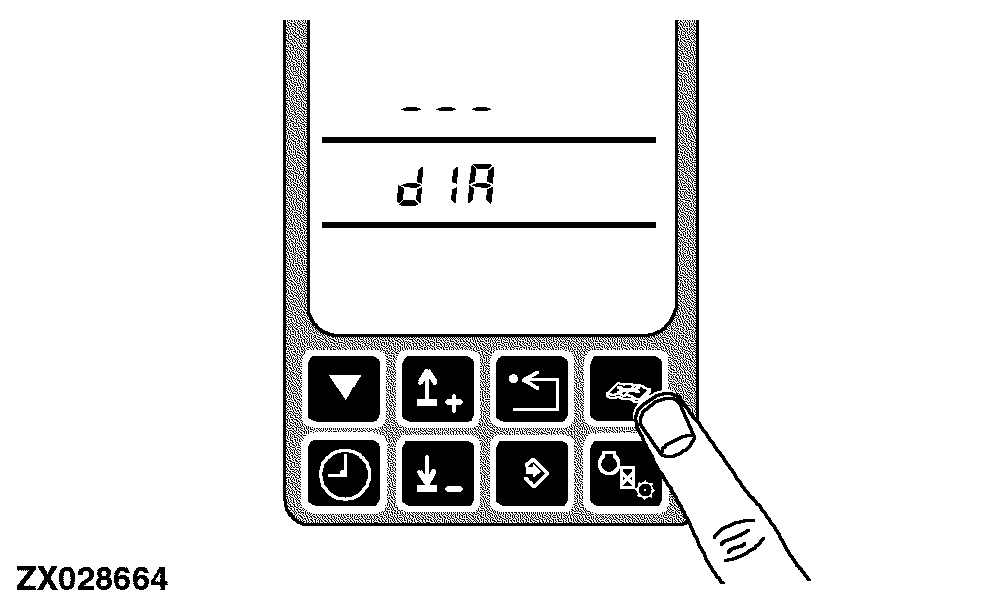

Press the diagnostic switch. dIA will appear on the display.

ZX028664

OUZXMAY,000034F -19-24JAN02-4/10

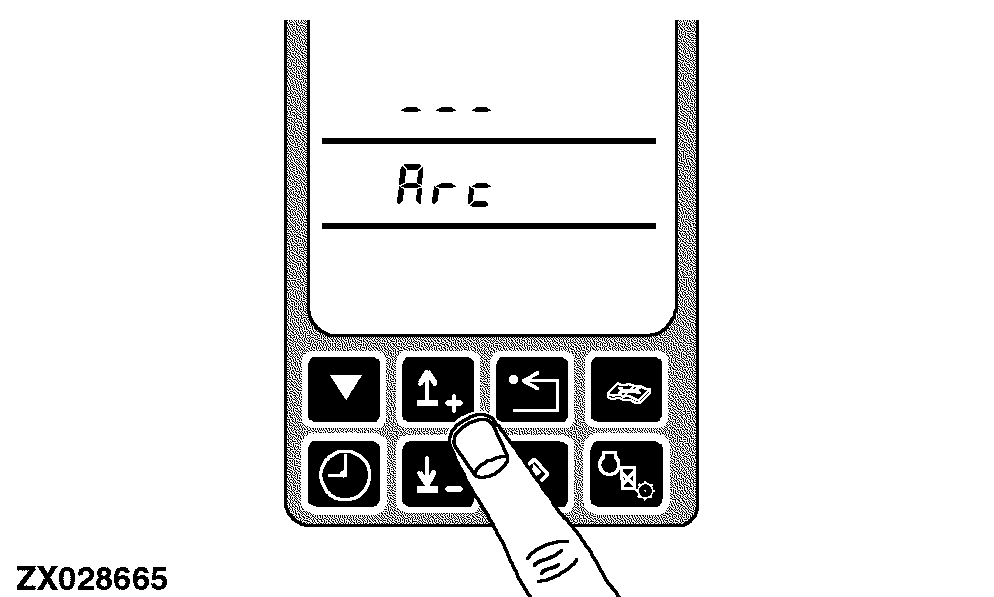

Press the up or down arrow switch to obtain the desired address (control unit identifier).

ZX028665

OUZXMAY,000034F -19-24JAN02-5/10

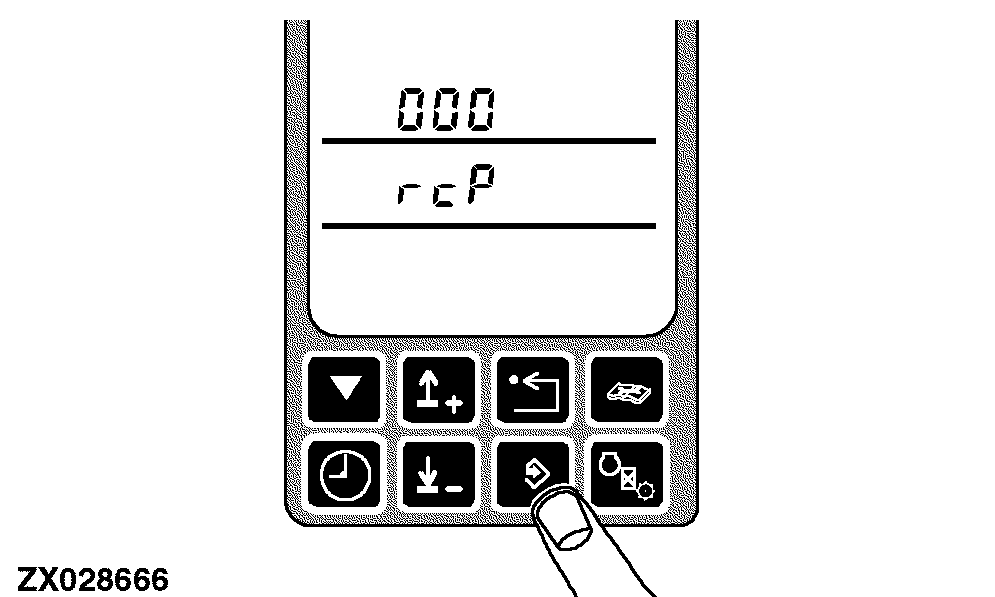

Press the enter switch to 'select' the control unit. The display show the control unit identifier and the initial diagnostic address 000.

ZX028666

OUZXMAY,000034F -19-24JAN02-6/10

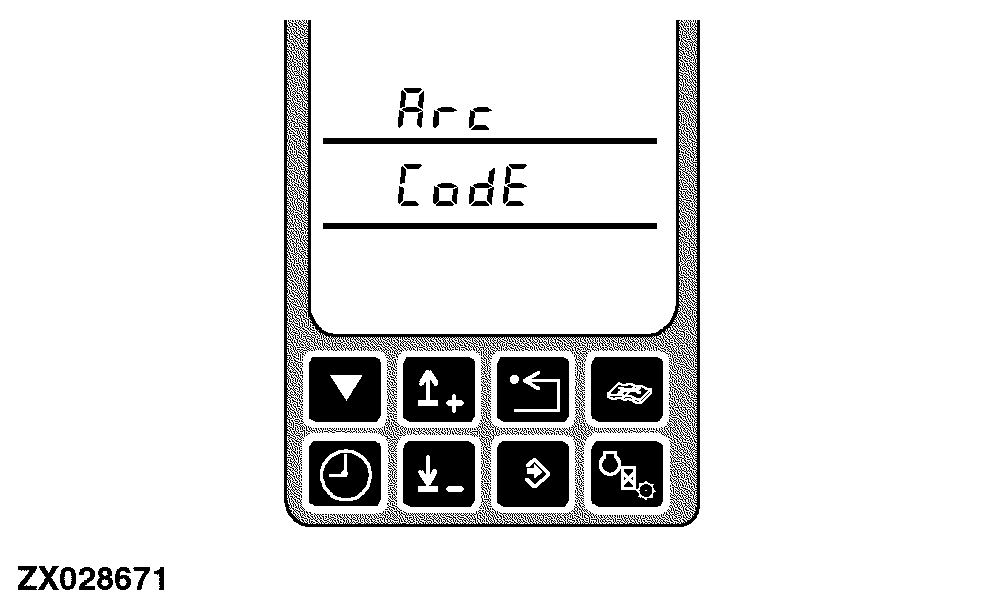

Press the up arrow switch once. If diagnostic trouble codes are available the control unit identifier and CodE will appear on tachometer.

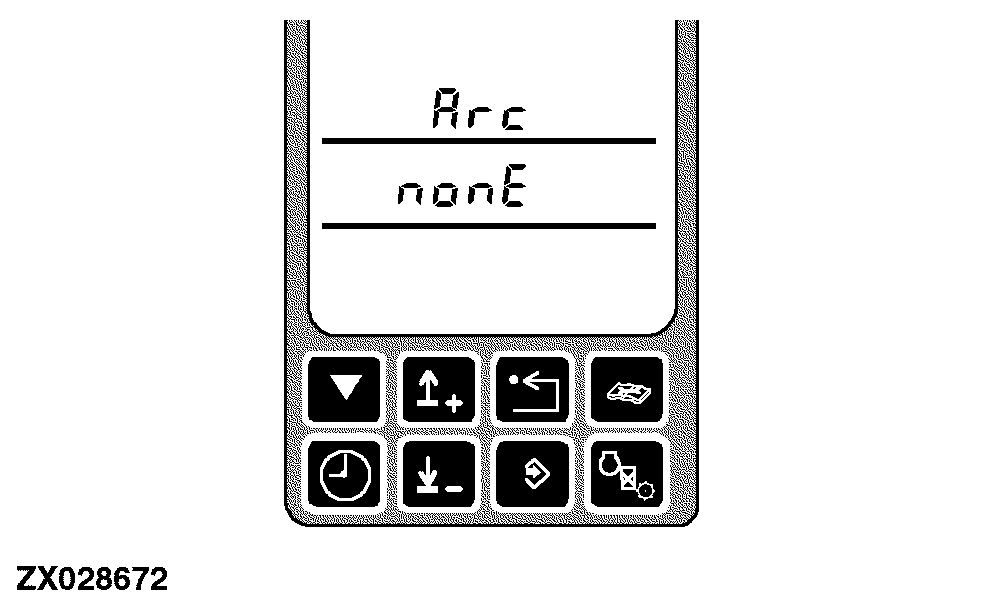

If no diagnostic trouble codes are available the control unit identifier and nonE will appear on tachometer.

ZX028671
ZX028672

OUZXMAY,000034F -19-24JAN02-7/10

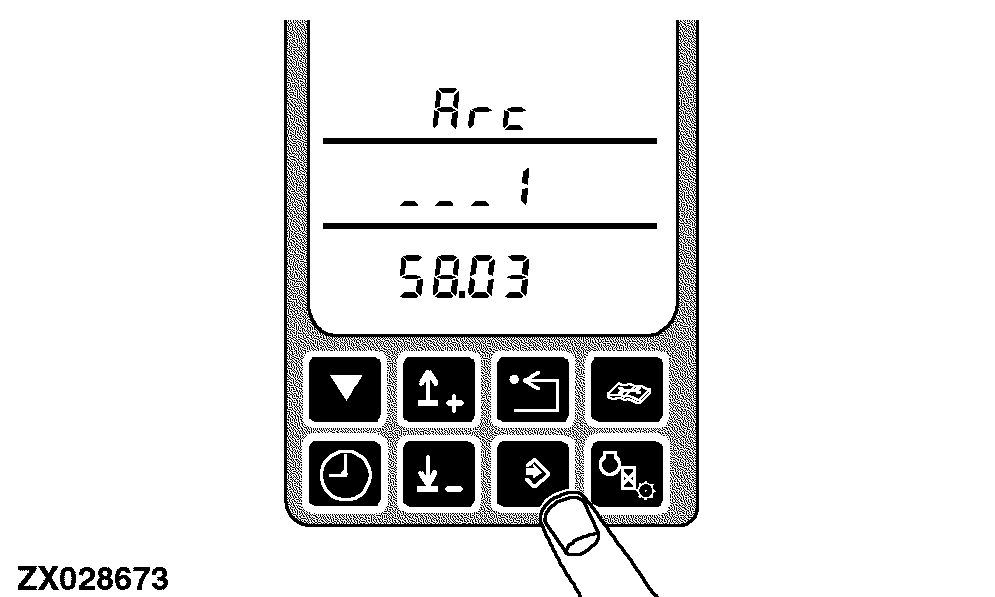

To read and record diagnostic trouble codes (if available) press the enter switch.

  • Record each control unit identifier
  • Record each suspected parameter number
  • Record each failure mode identifier
ZX028673

OUZXMAY,000034F -19-24JAN02-8/10

Press the down switch.

The next diagnostic trouble code appears on the display.

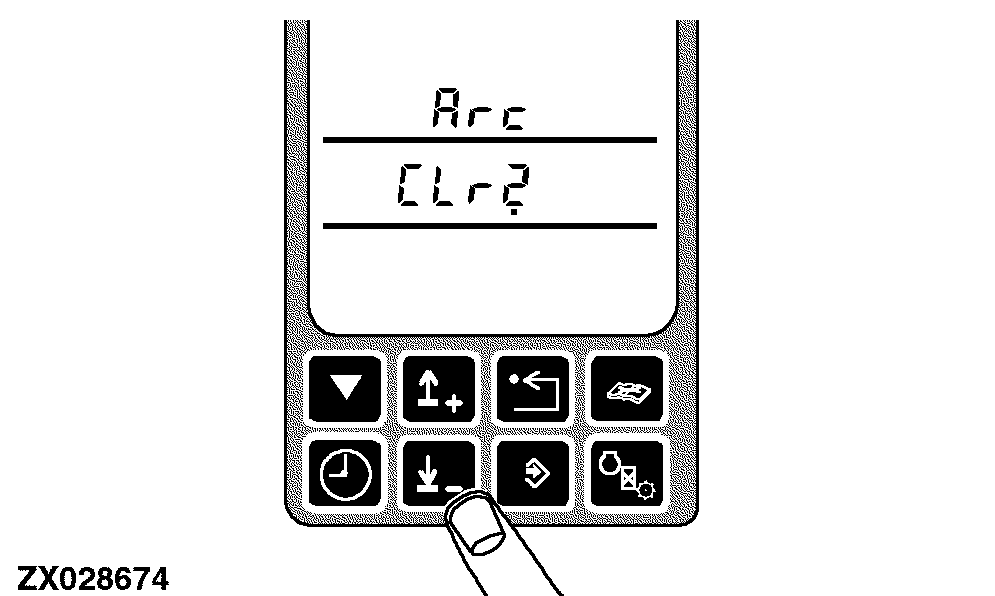

Repeat this procedure until the display reads CLr?

ZX028674

OUZXMAY,000034F -19-24JAN02-9/10

When "CLr?" appears on the display, press the enter switch.

Done appears on the display.

ZX028678
