Engage / Disengage Main Clutch Switch

Engaging / disengaging the main clutch

Engaging the main clutch is only possible with:

  • The road safety switch is in field operating mode
  • The feed roll housing is closed
  • The operator is sitting on the seat
  • The engine speed is below 1650 rpm
  • The sharpen door is closed
  • The sharpening stone is in home position
  • The kernel processor belt tension delay has expired (if equipped with kernel processor only)

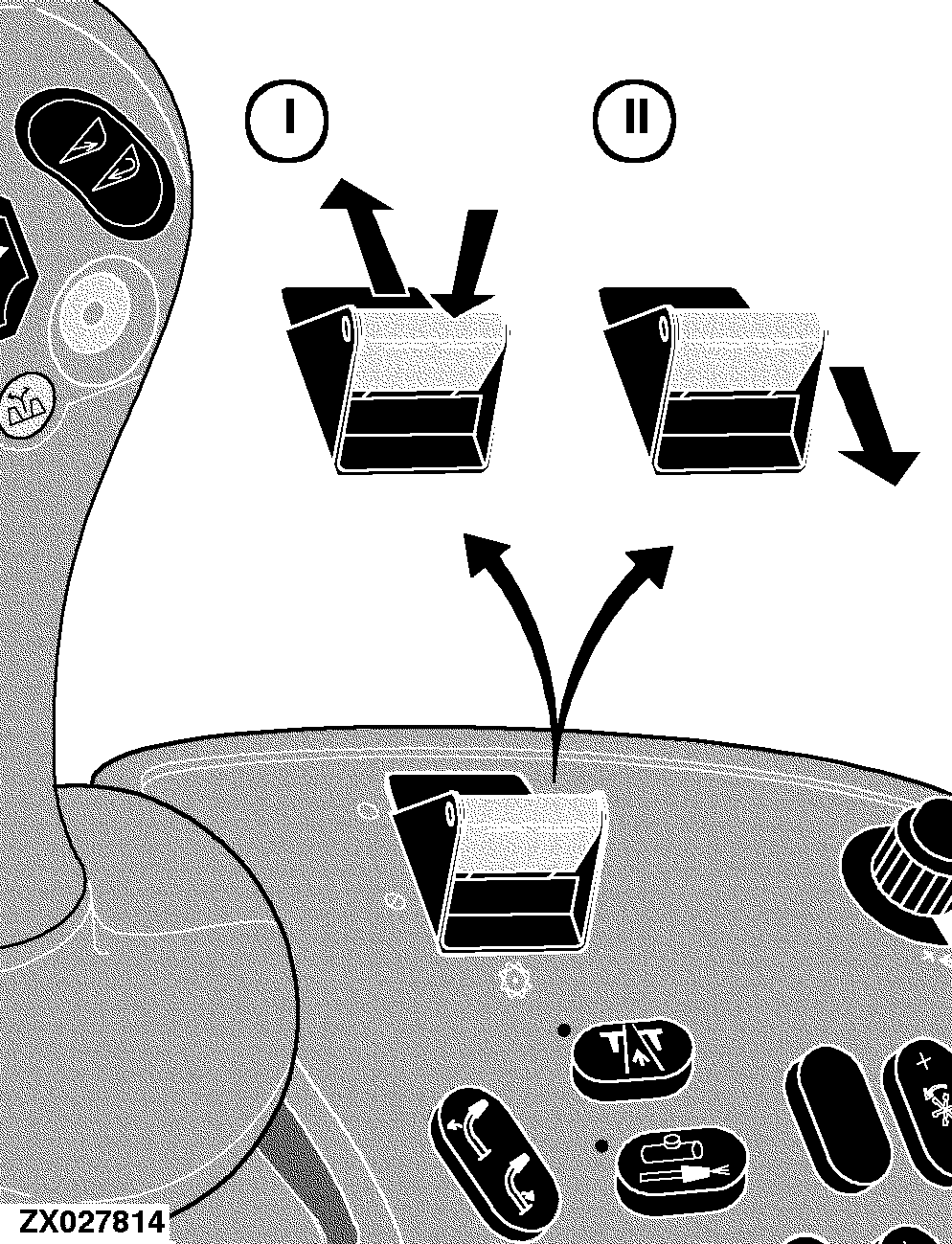

Engaging Main Clutch (I):

Push down and push forward to lock switch in the "on" position.

Disengaging Main Clutch (II):

Pull back to turn off.

ZX027814

OUZXMAY,0000359 -19-28JAN02-1/1
