Fast Turn Speed Switch for Discharge Spout (With Indicator Light)

Enable / disable the discharge spout fast turn mode.

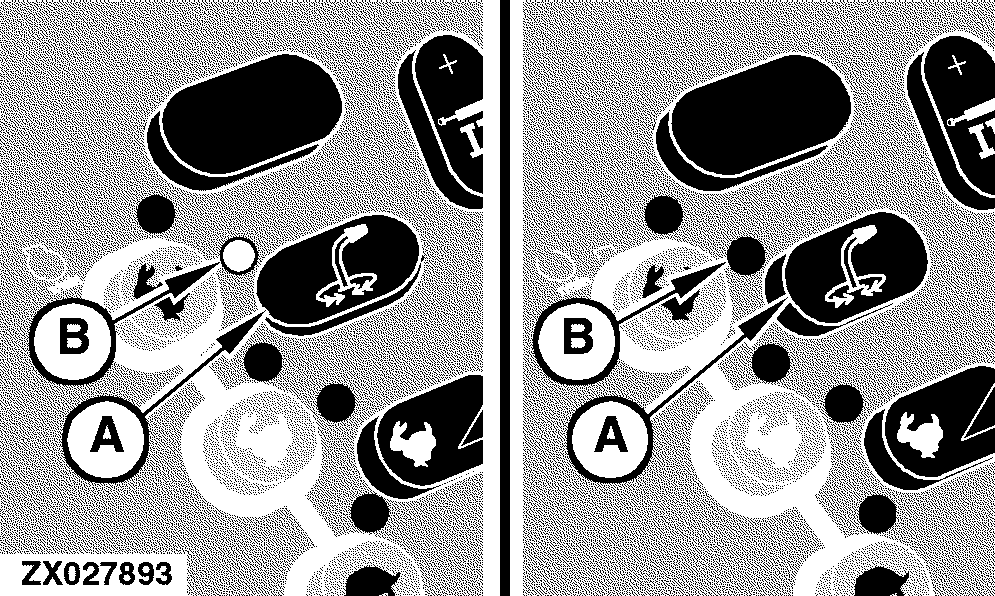

If the fast turn speed switch (A) for discharge spout is pressed, the indicator light (B) will come on indicating the fast turn mode is active.

To disable the fast turn mode press fast turn speed switch for discharge spout (A) again.

NOTE: While in the fast turn mode the selected delay time for slow turn mode will have no effect on the spout rotation speed and therefore no speed control will be implemented.

If the fast turn speed switch (A) for discharge spout is not pressed, the spout rotation works at slow speed (slow spout rotation).

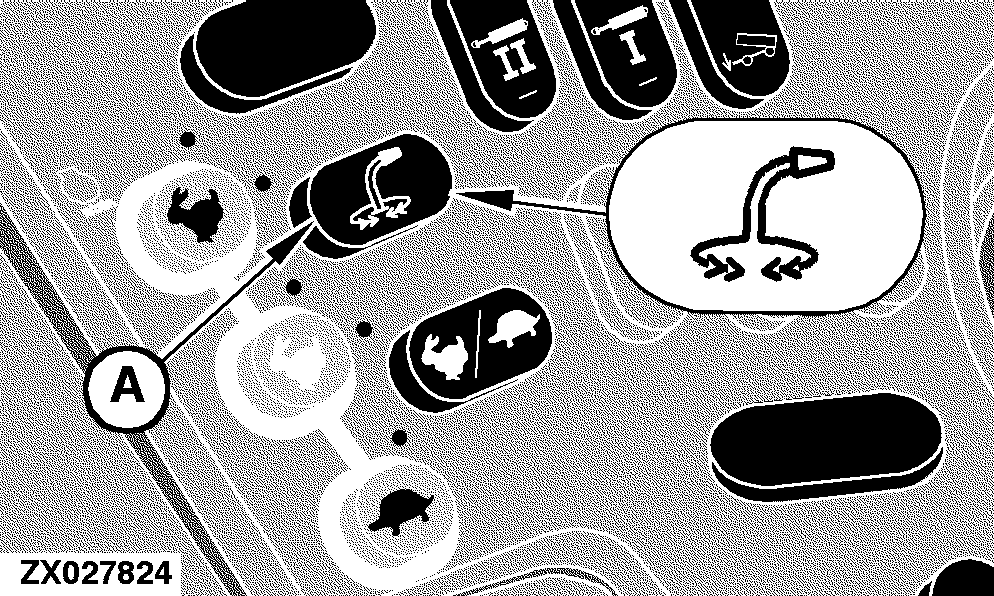

A-Fast Turn Speed Switch for Discharge Spout
B-Indicator Light

OUZXMAY,000035A -19-28JAN02-1/1
