Row Guidance Control Knob

Brings the machine back on track if it deviates (track adjustment).

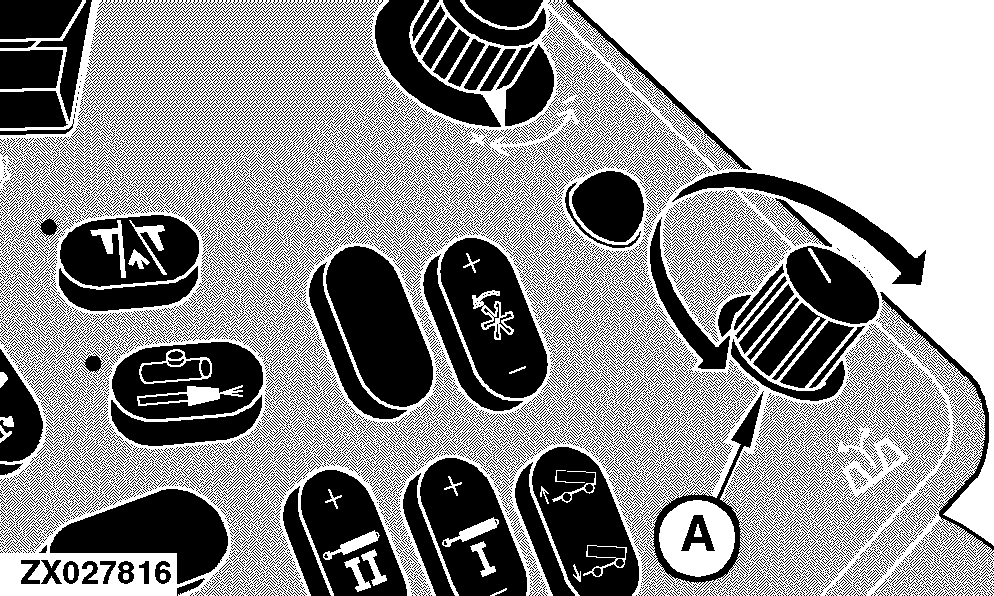

Potentiometer (A) allows the row guidance system to move the machine to either side within the same crop row. This allows intermediate rows to be cropped and compensates for sideslip if the machine is operated on a slope. Turn potentiometer (A) to the left or right.

OUZXMAY,000035C -19-28JAN02-1/1
