Fast / Slow Speed Switch for Header Drive (With Indicator Light) (IVLOC only)

Activating the header fast speed operating mode.

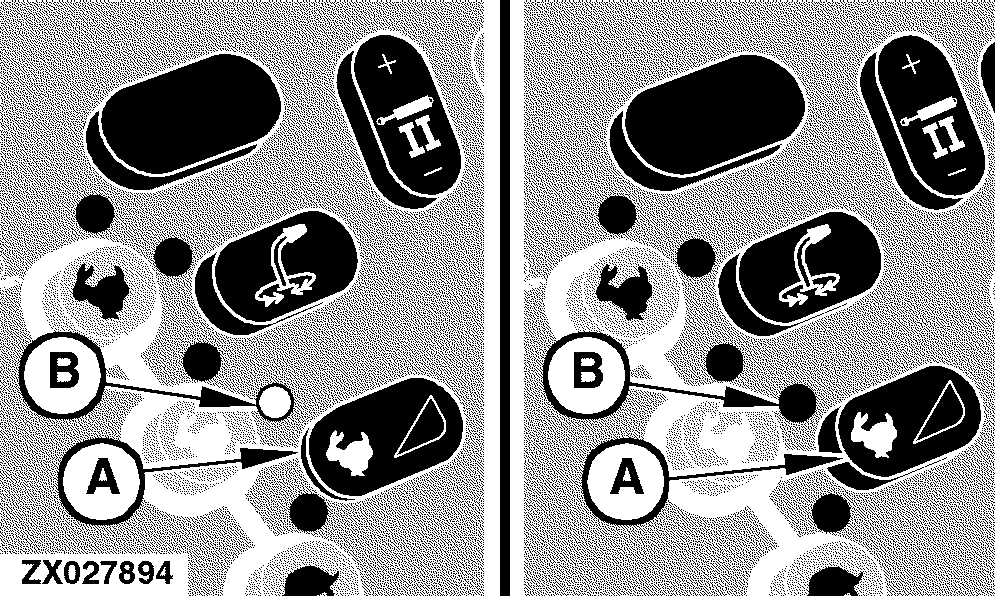

If the speed switch for header drive (A) is pressed, the indicator light (B) will come on indicating the header fast speed operating mode is activ.

To deactivate the header fast speed operating mode press speed switch for header drive (A) again.

NOTE: Use the header speed fast mode to increase the speed of the pick-up auger or the rotary feeding components on corn heads.

If the engine is turned off, the electronic system of the Forage Harvester will memorize the header speed mode that was last activated. This mode will automatically be implemented when the engine is restarted.

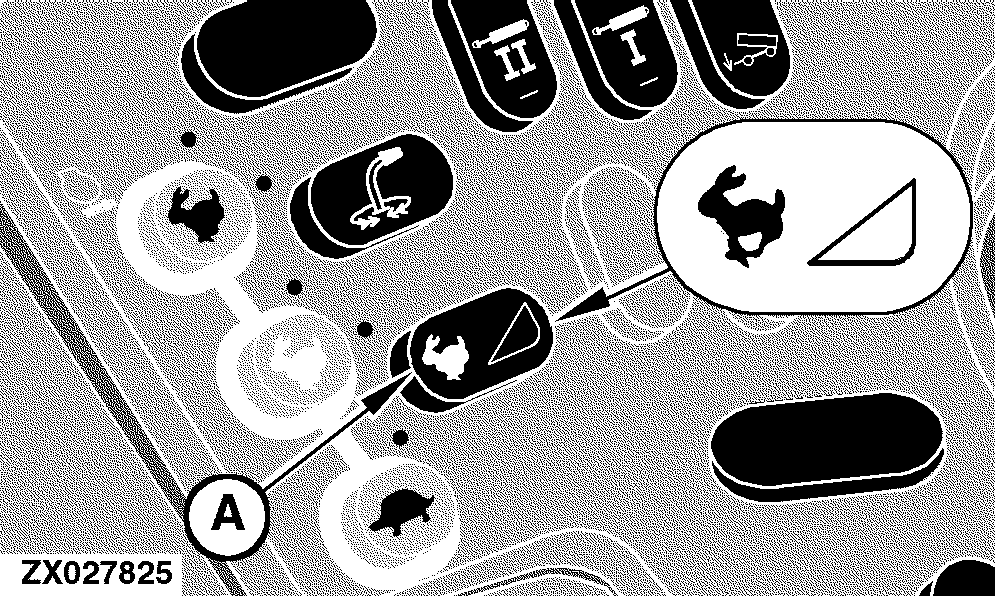

A-Fast / Slow Speed Switch for Header Drive
B-Indicator Light

OUZXMAY,0000361 -19-28JAN02-1/1
