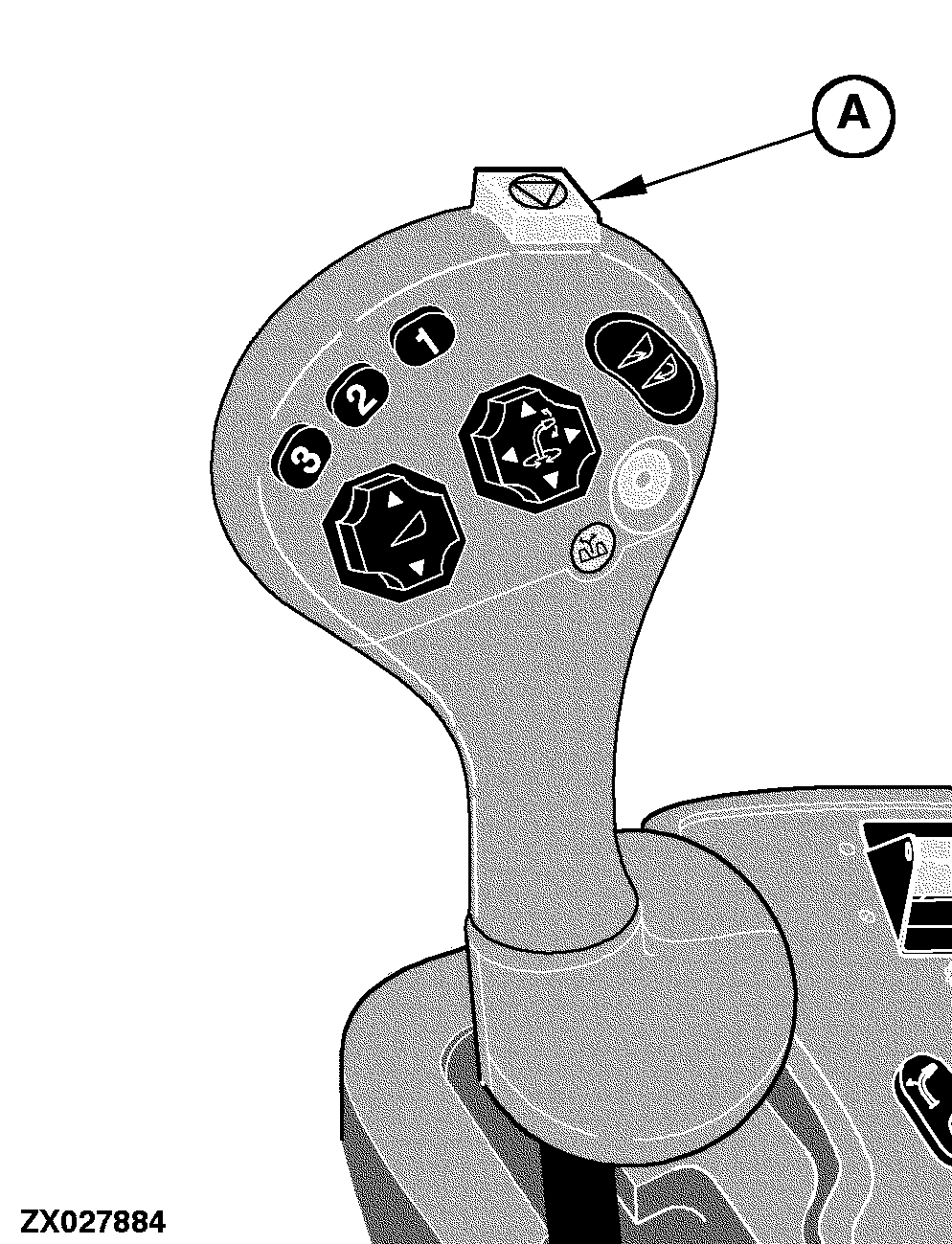

Quick Stop Switch

IMPORTANT: Feedroll drive can be disengaged by this switch in case of malfunctions.

Pressing the quick stop switch will results in an immediate interruption of any automatic vehicle function that is currently in process as well as the stop of the feedroll drive.

The manual cutterhead reverse operation can also be interrupted by pressing the quick stop switch.

OUZXMAY,0000364 -19-28JAN02-1/1
