Discharge Spout Turn and Spout Flap Raise / Lower Switch

Discharge spout flap adjustment

Press symbol (III) to raise the spout flap.

Press symbol (IV) to lower the spout flap.

Turn Discharge Spout

Turning discharge spout is only possible:

• Engine running (alternators working)
• Road safety switch in field position

If switch (B) is not pressed:

If the symbols (I) or (II) of switch (A) are pressed, the spout rotate operation works at slow speeds (spout slow rotate mode). While operating in spout slow rotate mode, if the spout rotate function is configured to switch over to the spout fast rotate mode, the electronic system automatically enters spout fast rotate mode when a configurable delay time has expired. The delay time before entering the spout fast rotate operating mode can be selected between zero and 25 seconds. If zero is selected, only the spout slow rotate mode is available. If a value greater than zero has been chosen, the system automatically enters the spout fast rotate mode when the selected delay time has expired. That means, the spout works in the spout slow rotation mode as long as the delay time selected by the operator has not expired. When the delay time has expired the spout slow rotate mode alternats to the spout fast rotate mode, provided that the spout rotate request is still active (symbols (I) or (II) are still pressed).

If switch (B) is pressed:

An additional hydraulic valve provides increased oil flow to the spout rotate motor. This results in an increased spout rotation speed. If switch (B) is pressed, the system works with the fast rotate operating mode only. While in this mode an operator selected delay time (as described above) has no effect on the spout rotation speed.

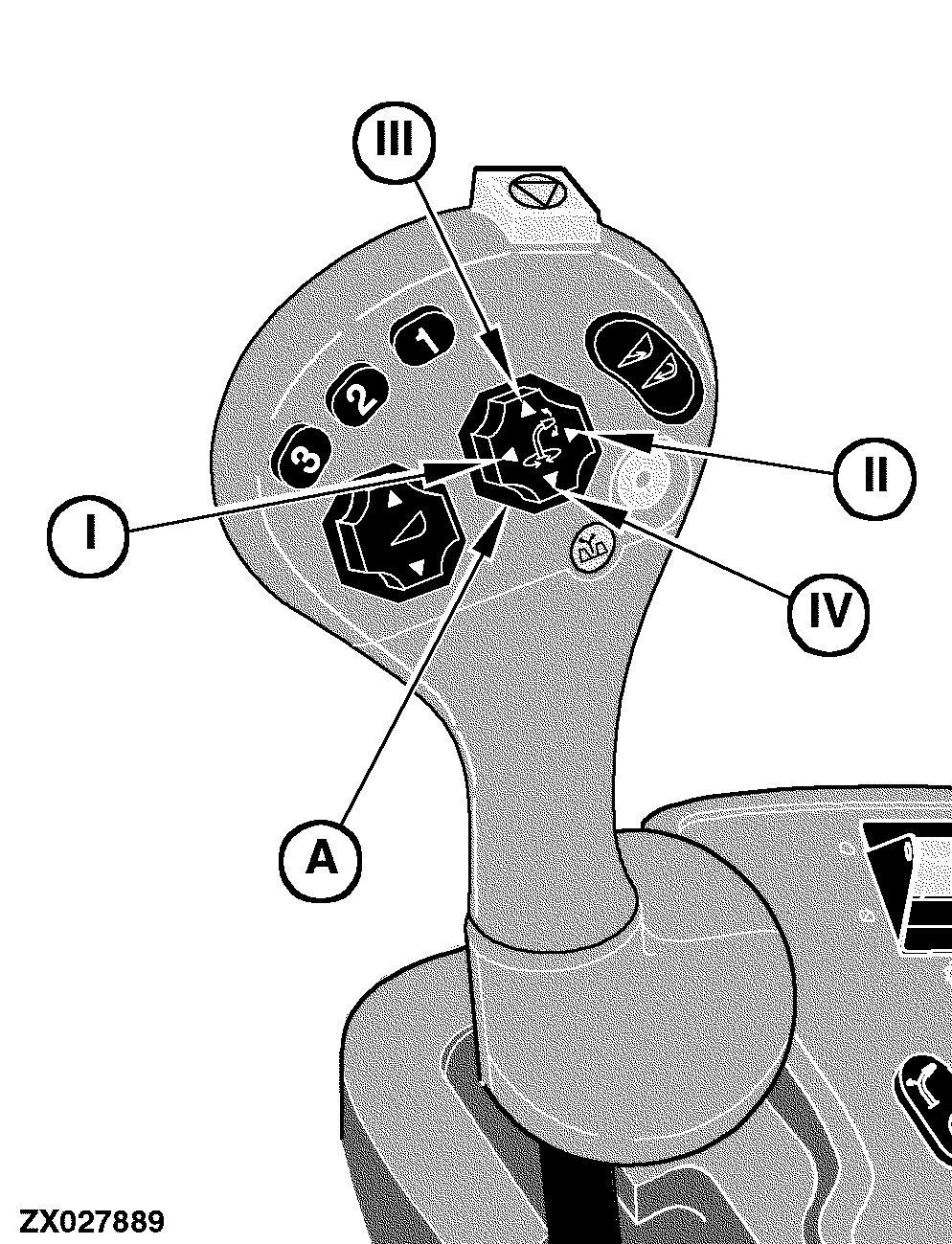

A-Discharge Spout Turn and Spout Flap Raise / Lower Switch

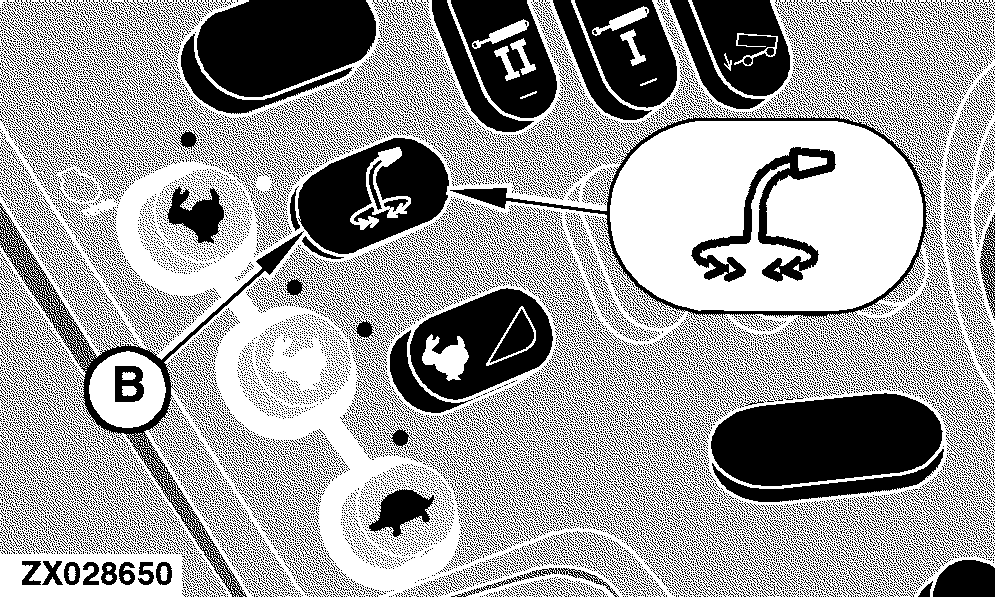

B-Fast Turn Speed Switch For Discharge Spout
I-Spout Turns To The Left
II-Spout Turns To The Right
III-Raise Spout Flap
IV-Lower Spout Flap

OUZXMAY,000036A -19-28JAN02-1/3

NOTE: For detailed calibration information see Section "Calibration Procedures" at the appropriate addresses.

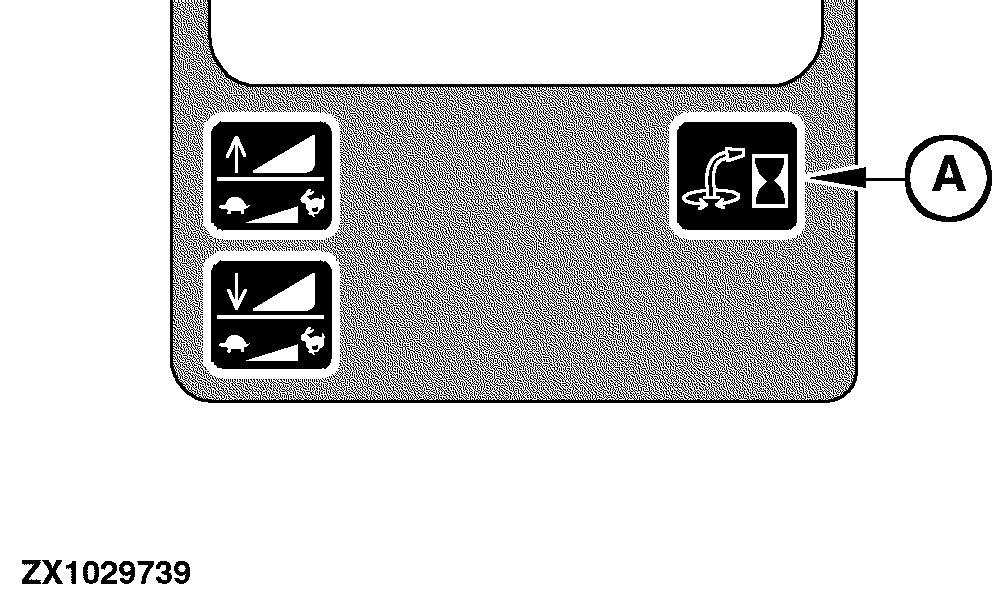

To calibrate the spout rotate fast delay time use quick calibration switch (A) or manually enter the following address:

• Spout rotate fast delay calibration - Address ARC 100

OUZXMAY,000036A -19-28JAN02-2/3

If the symbols (III) or (IV) of switch (A) are pressed, the spout flap is moved up or down to control the crop flow.

A-Discharge Spout Turn And Spout Flap Raise / Lower Switch
III-Raise Spout Flap
IV-Lower Spout Flap

OUZXMAY,000036A -19-28JAN02-3/3
