Washing Cab Windows

CAUTION: Close cab door securely and use hand holds.

IMPORTANT: Do not manually move the wiper arm, this could cause damage to the wiper mechanism.

Use landing to clean left and right side of cab. Use appropriate cleaning tools to reach the rear class and windshields from left and right landings.

Stand on raised feedroll housing to clean front cab window and service head lights or wiper.

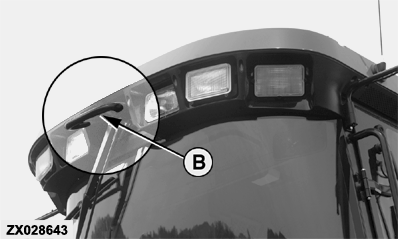

For stability, use handrails (A) on either side of the cab and handhold (B) near the wiper.

A-Handrails
B-Handhold

OUZXMAY,000036C -19-28JAN02-1/1
