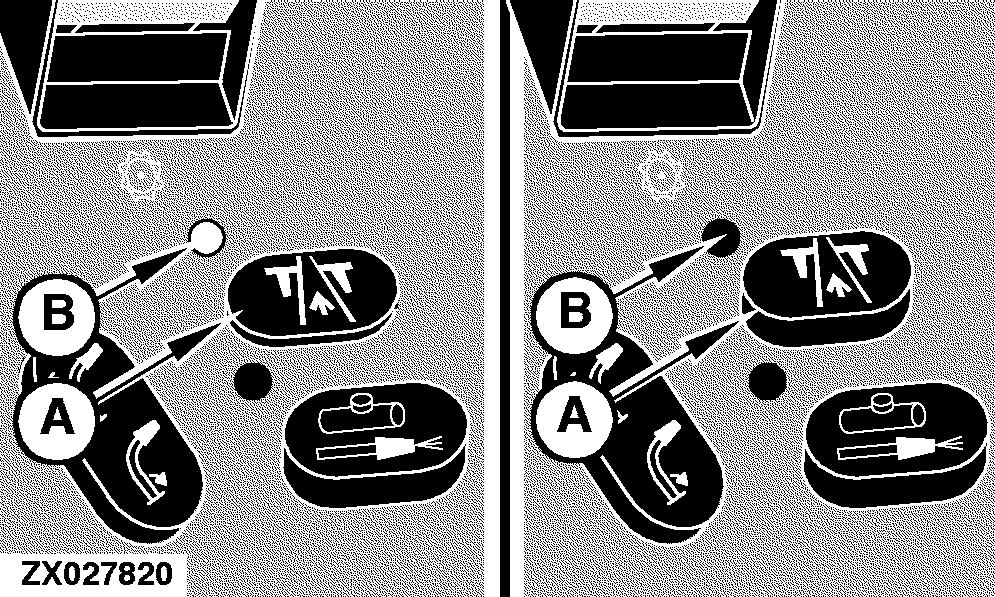

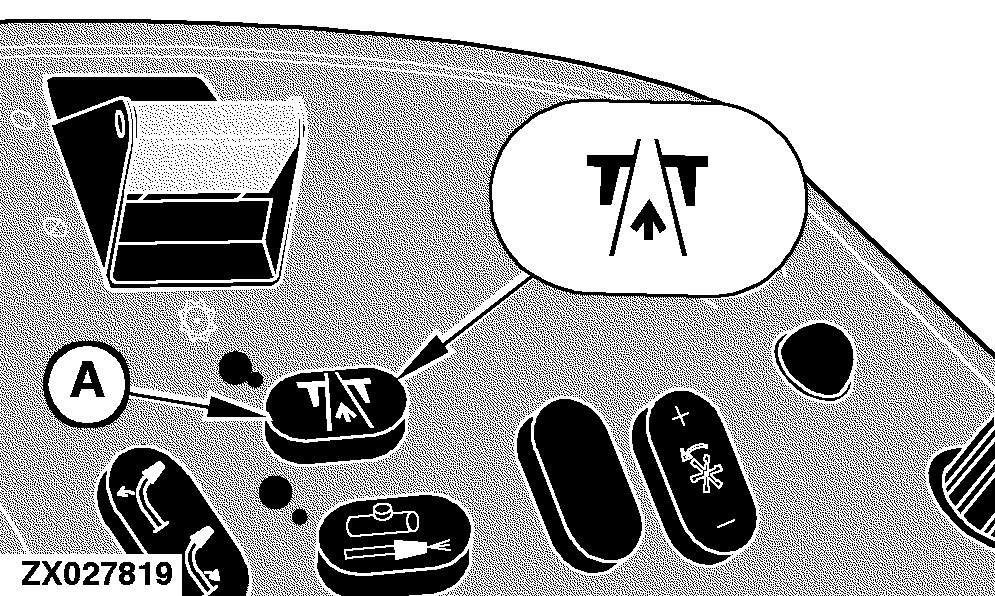

Road Safety Switch (With Indicator Light)IMPORTANT: For road travel, road safety switch must be pressed. Before driving on public roads, also move header and spout to transport position. For road travel, switch (A) must be pressed. If the road safety switch is pressed, the indicator light (B) will come on indicating the switch is in the road engage position. Pressing the switch will disengage all the hydraulic functions with the exception of the steering. To re-engage the hydraulic functions for field operation, press the road safety switch; the indicator light (B) will go out indicating the switch is in the field position.
|
|
OUZXMAY,0000377 -19-03FEB02-1/1 |
