Fuse / Relay Tester

The fuse / relay tester is operable with the ignition switch in OFF position.

Open the load center door.

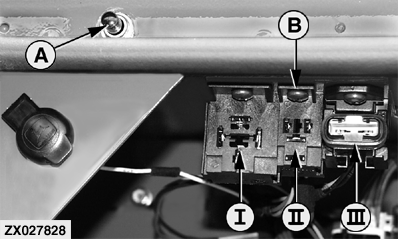

Press the load center door switch (A).

Insert the fuse / relay to be tested into the test socket (B).

  • I - Port to test large relays
  • II - Port to test small relays
  • III - Port to test fuses

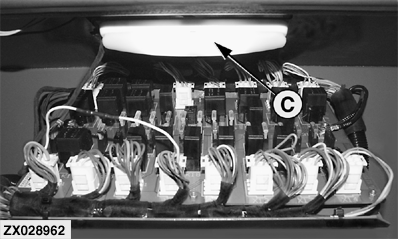

If load center light (C) comes on, the fuse or relay is OK.

If load center light (C) does not come on, the fuse or relay is defective.


A-Load Center Door Switch
B-Test Socket
C-Load Center Light

ZX027828
ZX028962

OUZXMAY,0000381 -19-01NOV02-1/1
