Sockets

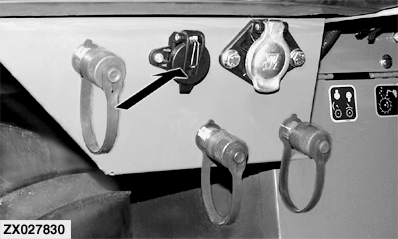

Liquid injection pump outlet

Powered via fuse 1F6 (30 amps.).

Running liquid injection pump is only possible with:

  • System in field operating mode
  • Self-Popelled Forage Harvester is driving forward
  • Ground speed is greater than 2 km/h (1.24 mph)
  • Header is in harvesting position
  • Feedrolls turning in forward direction
  • Liquid injection pump switch is pressed

If one of the above conditions is not met, the electronic system will release the power control relay and thus power for the injection pump will be removed from the outlet.

Whenever power for the injection pump is supplied to the liquid injection pump outlet, status information will be displayed by an indicator light at the corner post.

ZX027830

OUZXMAY,0000383 -19-05FEB02-1/7

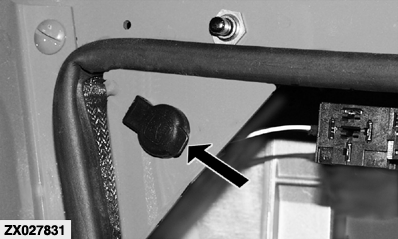

Electric outlet load center

This socket is always powered from the battery via fuse 3F9 (15 amps.)

ZX027831

OUZXMAY,0000383 -19-05FEB02-2/7

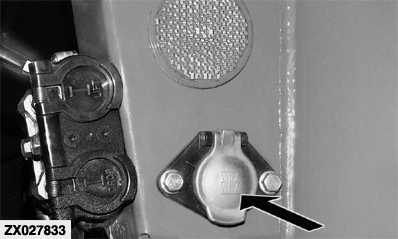

Electric Outlet for Trailer

This outlet provides swiched battery power via fuse 1F22, (15 amps.) and the following signals:

  • Turn lights
  • Hazard lights
  • Stop lights
ZX027833

OUZXMAY,0000383 -19-05FEB02-3/7

Electric Outlet for Row Guidance

ZX027834

OUZXMAY,0000383 -19-05FEB02-4/7

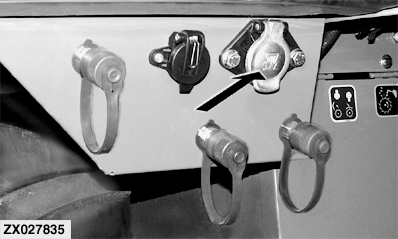

Electric Outlet for 676 Header Brakes

ZX027835

OUZXMAY,0000383 -19-05FEB02-5/7

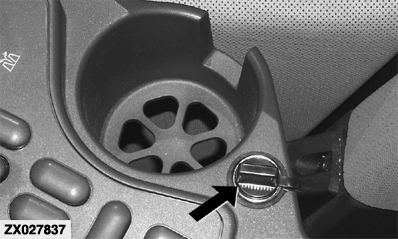

Outlet in armrest

This outlet provides switched power via fuse 1F22 (15 amps.).

ZX027837

OUZXMAY,0000383 -19-05FEB02-6/7

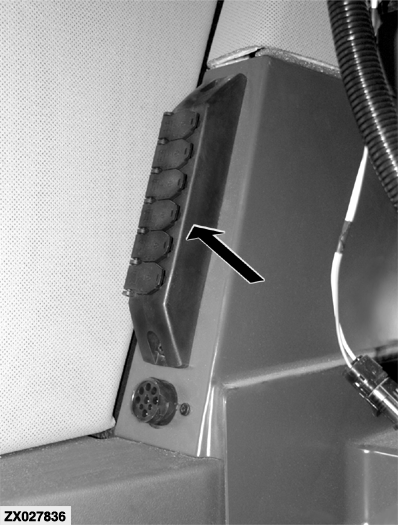

Power strip

This outlet provides unswitched battery power (6 outlets) via fuse 3F6 (30 amps.).

ZX027836

OUZXMAY,0000383 -19-05FEB02-7/7
