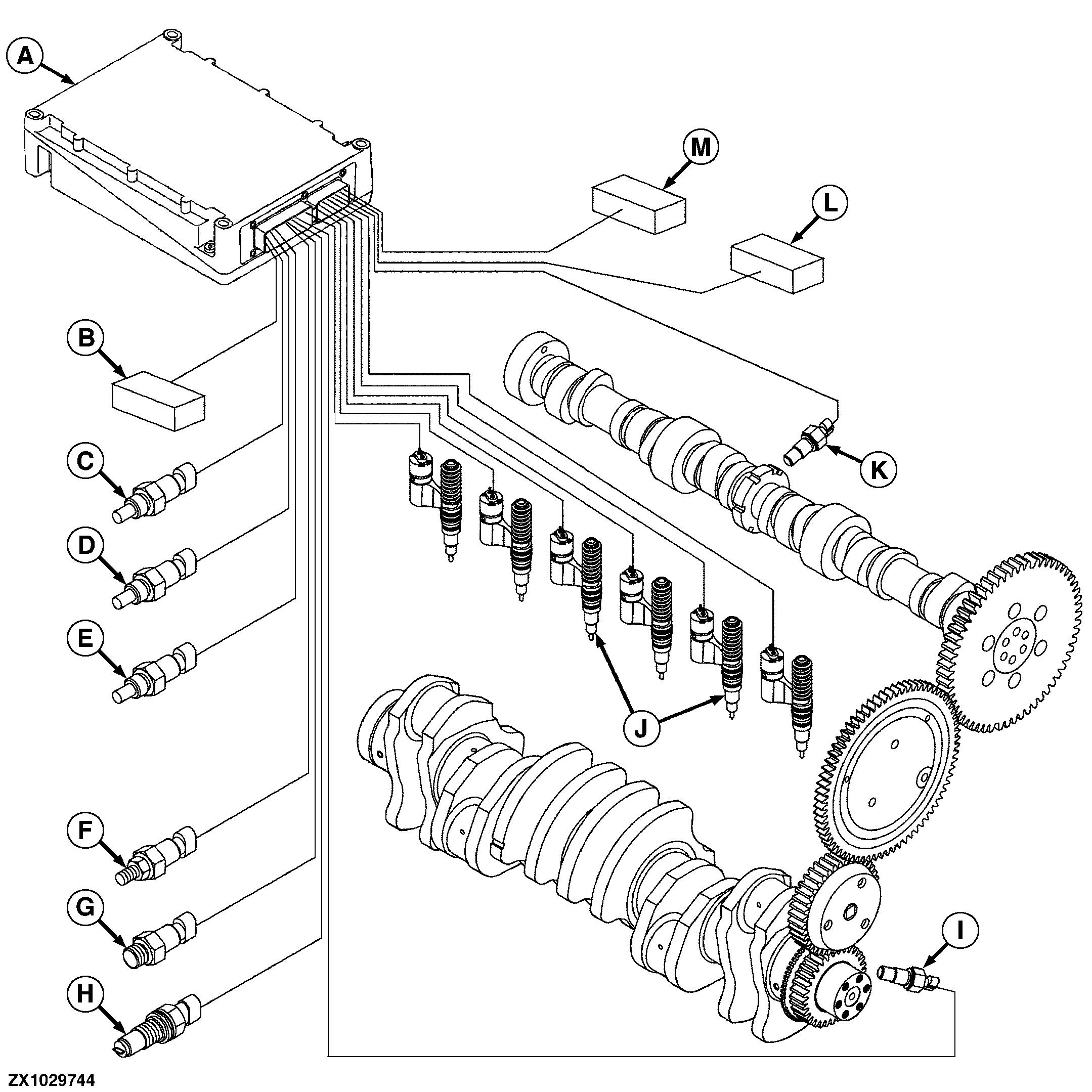

A-Engine Control Unit (ECU)
B-Throttle Position Sensor
C-Coolant Temperature Sensor (1 or 2 used)
|
D-Fuel Temperature Sensor
E-Manifold Air Temperature (MAT) Sensor
F-Oil Pressure Sensor
|
G-Fuel Pressure Sensor1
H-Water-in-Fuel Sensor1
I-Crankshaft Position Sensor
J-Electronic Unit Injector (6 used)
|
K-Camshaft Position Sensor
L-Diagnostic Reader
M-Vehicle Output Monitor
|
