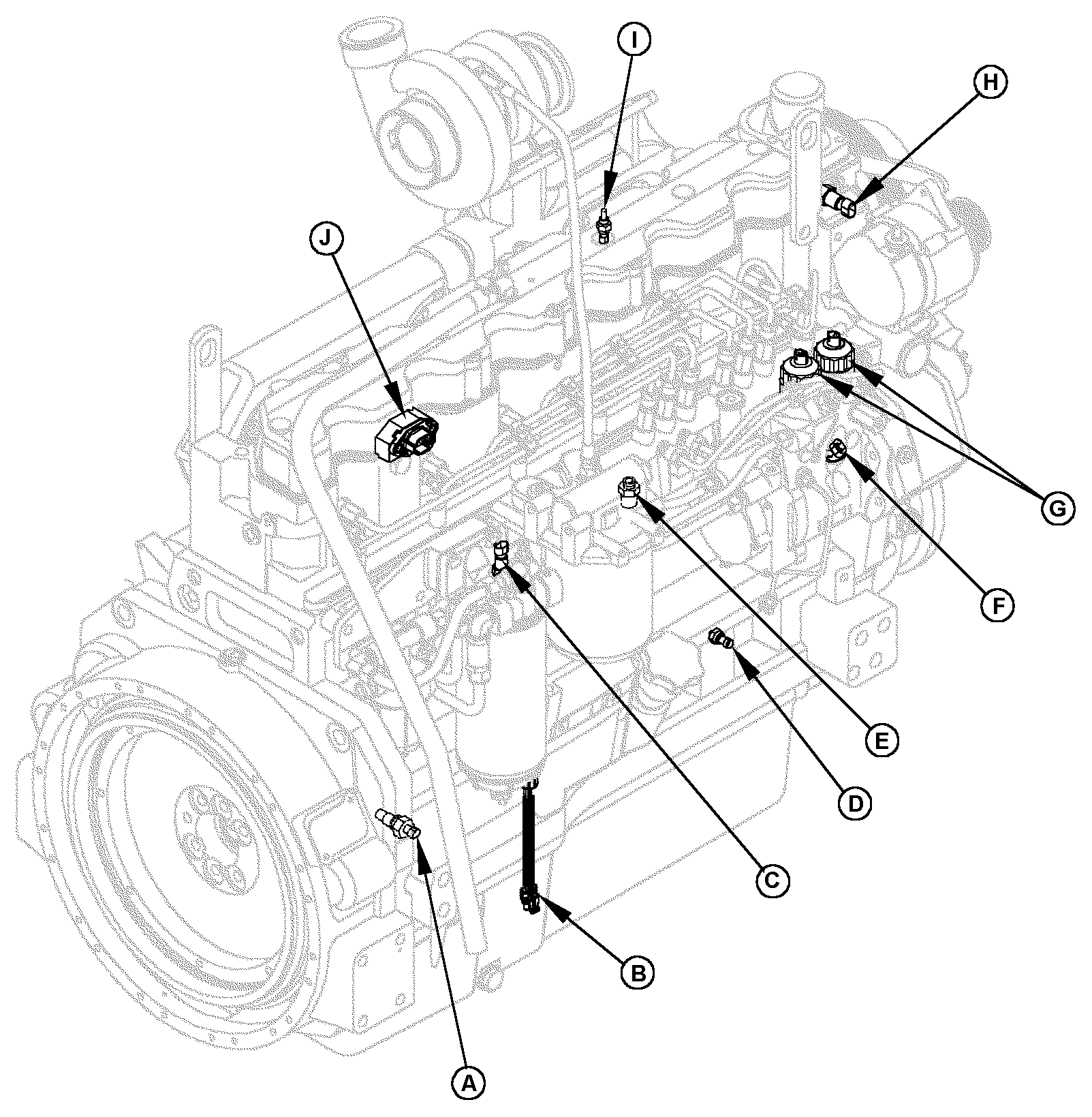

A-Crank Sensor
B-Water In Fuel Sensor (WIF)
C-Fuel Temperature Sensor
D-Oil Pressure Sensor
|
E-Fuel Rail Pressure Sensor
F-Event Sensor
G-Pump Control Valves (PCVs)
|
H-Engine Coolant Sensor (ECT)
I-Manifold Air Temperature Sensor (MAT)
|
J-Electronic Injector (EI) Wiring Harness Connector
|
