Automatic Function Control Panel Light Bulb Replacement

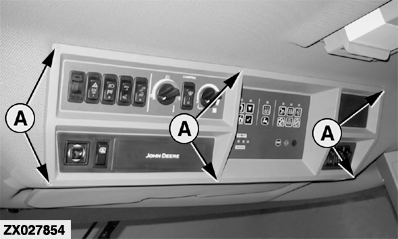

Remove six screws (A) attaching display panel and lower panel.

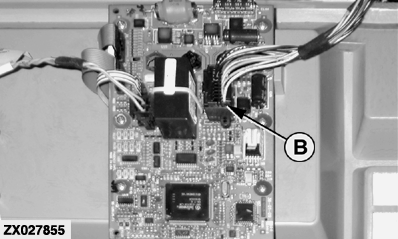

Remove connector (B).

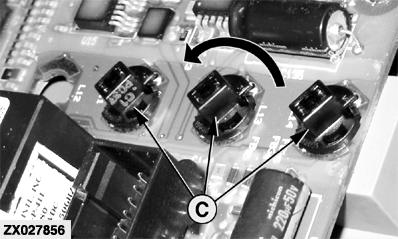

Remove defective bulb by turning out.

Install new bulb in reverse order.

A-Screws (6x)
B-Connector
C-Bulb (3x)

OUZXMAY,0000390 -19-10FEB02-1/1
