Replacing Hydraulic Oil Filter

IMPORTANT: Observe utmost cleanliness when installing filter.

Replace filter element after every 500 hours of operation or at the end of the harvesting season (whichever occurs first).

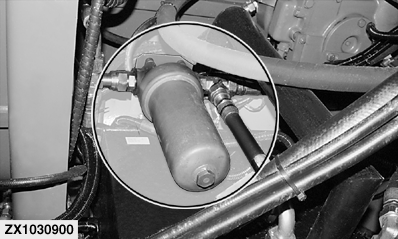

Loosen and remove filter.

Discard filter and replace with a genuine John Deere filter.

For installation of new filter proceed as follows:

Coat filter sealing surface with oil.

Tighten filter element by hand until sealing ring touches filter housing sealing surface and then tighten a further 3/4 to 1-1/4 turns. Do not overtighten.

Start engine and check for leaks, if necessary retighten.
